Short Path Distillation Kit LZ-SDK-A100

Overview

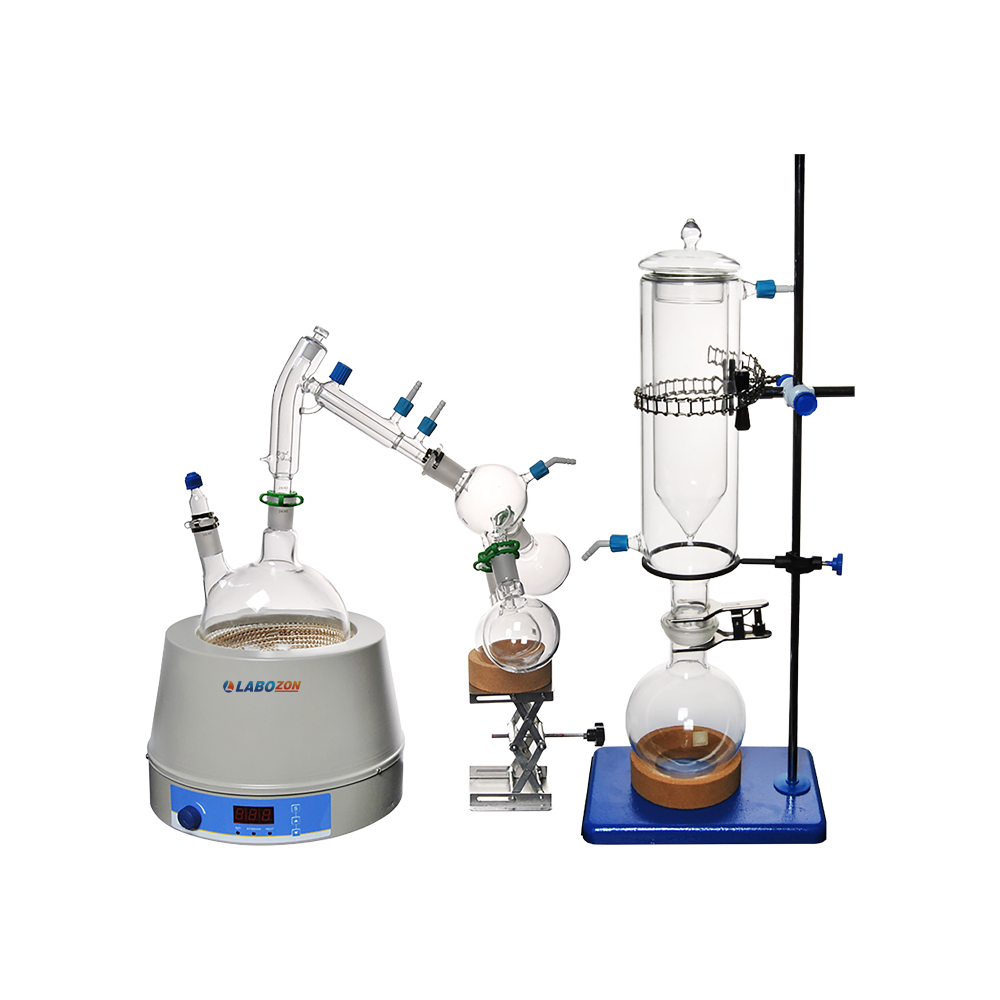

Short Path Distillation Kit LZ-SDK-A100 is a 2L distillation unit comes complete with a digital heating mantle, a set of glassware, a cold trap, and a fabric Insulation shield. The heating mantle not only provides heat but also incorporates magnetic stirring for improved solution homogenization. It is mainly used for enrichment, crystallization, separation, drug extraction, solvent recycling, pharmaceutical and biological industry, etc.

Specifications :

Boiling Flask	2L, Neck 29/42 Center joint,24/40 Offset Joint
Receiving Flask	1000 ml, 45/50
Condenser	Jacketed, Hollow 14/20, penny stopper
Cold Trap Joint set	3x 24/40 250ml Round Bottom receiving Flask
Distillation Receiver	24 x 40
Iron Stand	250 x 160 mm
Heating Mantle ( Optional)	2000 ml, 380°C RT
Fabric Insulation Shield	25 mm thickness shield without heating 25 mm thickness shield with heating
Lab Stand	100 x 100 mm
Dimensions	Glassware package: 520 x 450 x 240 mm (Foam Case) Heating Mantle and others: 390 x 280 x 340 mm
Weight	Glassware package: 5 kgs Heating Mantle and others: 9.5 kgs

Features :

• Durable Borosilicate glass of high quality
• 304 stainless steel Lab stand lifting platform
• Heating mantle with magnetic stirring function for consistent heating of the homogenized solution
• 24x40 Distillation cow receiver
• Cold trap function guards against contamination and harm from released vapours
• Adaptability in the choice of chillers and vacuum pumps
• Operating temperature is low, which can greatly save energy consumption
• Reduced heating time resulting in less thermal damager of heat sensitive substances
• Rapid separation and reliable sealing

Applications :

Typically used in polymer organic compounds, essential oils, especially from the chemical pharmacy and food industries etc.,

Accessories :

Distillation Head
Thermometer adapter
GL-14 connections
Stainless steel clips
Plastic Keck clips
Metal Keck clips
Cold Trap
Boss Head
Iron ring paint
Cork Ring
Chain Clamp
British Iron stand
