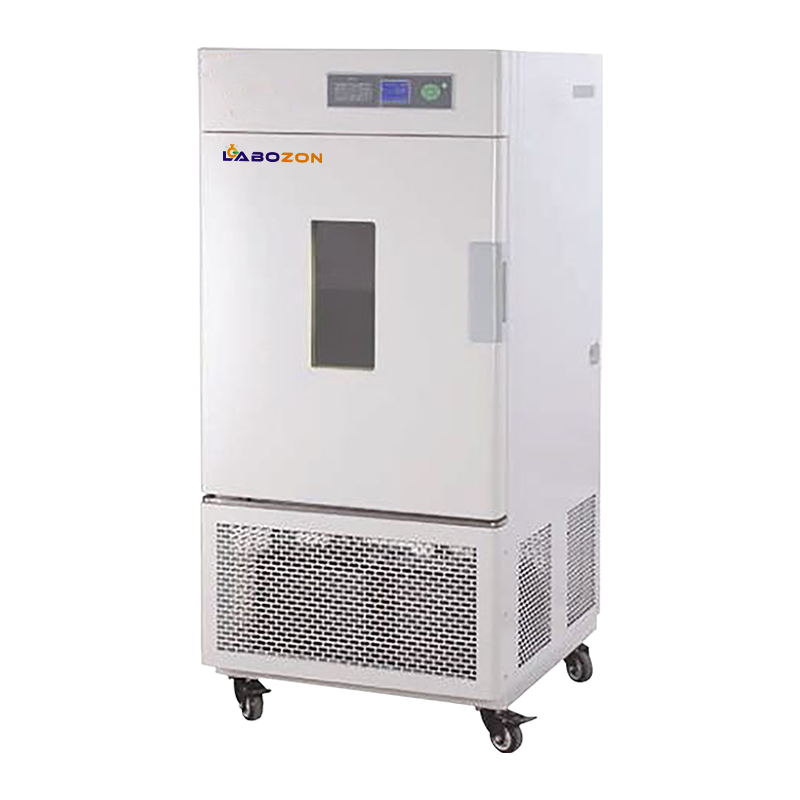

Temperature and Humidity Test Chamber LZ-THC-A103

Overview

Temperature and Humidity Test Chamber LZ-THC-A103 is designed with 500 L chamber volume. Designed to function with 40 to 85 % RH humidity range and 5 to 80°C temperature range parameters. The PID microprocessor controller system controls main unit, temperature system and display. The precise system of temperature and humidity control provides various necessary environmental simulative conditions for industrial researches and biotechnology tests. The good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.

Specifications :

Capacity	500 L
Temperature Range	5 to 80°C
Display Resolution	0.1℃
Temperature Stability	High ±0.5℃ Low ±1℃
Temperature Uniformity	±2℃
Humidity Range	40 to 85 %
Humidity Accuracy	±3 % RH
Ambient Temperature	+5 to 35℃
Shelves	4 pcs
Internal Dimension	670 × 720 × 1020 mm
External Dimension	850 × 1100 × 1930 mm
Power Consumption	3850 W
Power supply	220 V, 50 Hz
Net weight	270 kg
Gross weight	430 kg

Features :

• PID microprocessor controller system controls main unit, temperature system and display
• Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning
• Chamber offers adjustable space between shelves
• Adopted with imported compressor
• Equipped with independent temperature-limiting alarm system ensures experiments run safely
• Offers 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement
• 4 movable castors for ease moving, and with brakes function

Optional Accessories :

Accessories no.	Name
1	Printer
2	Independent temperature-limiting Alarm system

Applications :

Temperature and Humidity Test Chamber is used in food industry, advanced research and pharmaceutical industries, chemical industries, industries that includes testing products relating to aerospace, electronics, automobile and environmental stress screening etc.
