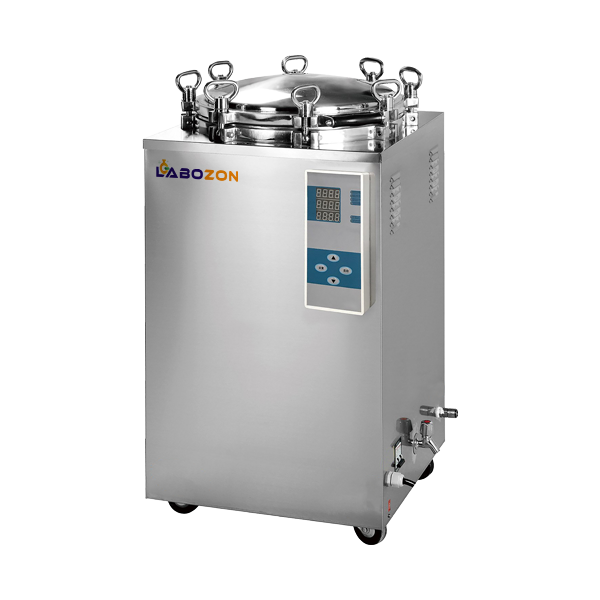

Vertical Autoclave LZ-VA-C25

Overview

Vertical Autoclave LZ-VA-C25 it is a stain less steel autoclave with a two stainless steel sterilizing baskets, having with a digital display, and having with touch keys for operating. It is having with the inbuilt sensor for the indications of fluctuations. It is having with the capacity of 150 L with the sterilization volume of φ510×740 mm. The working pressure of a sterilization is 0.22 MPa with an adjustable temperature of 105 ˚C to 134 ˚C. The over pressure can be automatically set by adjusting 0.22 MPa to 0.23 MPa.

Specifications :

Capacity	150 L
Sterilization	510×740mm
Working Pressure	0.22 MPa
Max.Working Pressure	0.23 MPa
Working Temperature	134 °C
Adjustable Temperature	105 to134 °C
Time Period	0 to 99 min
Power	2.5 to 4.5
Heat Average	≤± 1 °C
Packing Dimension	760×760×1270 mm
Dimensions	670×690×1130 mm
Gross Weight	135 kg
Net Weight	110 kg

Features :

• Designed with LCD display, and touch key buttons
• Digital display is for monitoring the work status and touch key to operate the sterilizer
• It has alert system, which automatically shut down with reminding beep alarm after sterilization
• Equipped two stainless steel baskets
• Designed water level sensor for indicating low water level
• Over pressure and over temperature protection
• Electric or dry heating is by occupying copper tubes of heating elements
• It has capability of auto discharging cool air, then after sterilization automatically the steam also discharges
• Protection high heating high temperature and electrically safe protective device

Applications :

It is provided for disinfection and sterilization
Used to decontaminate the sterilize media and biological waste
Used mostly in laboratories, medical and research institutions
