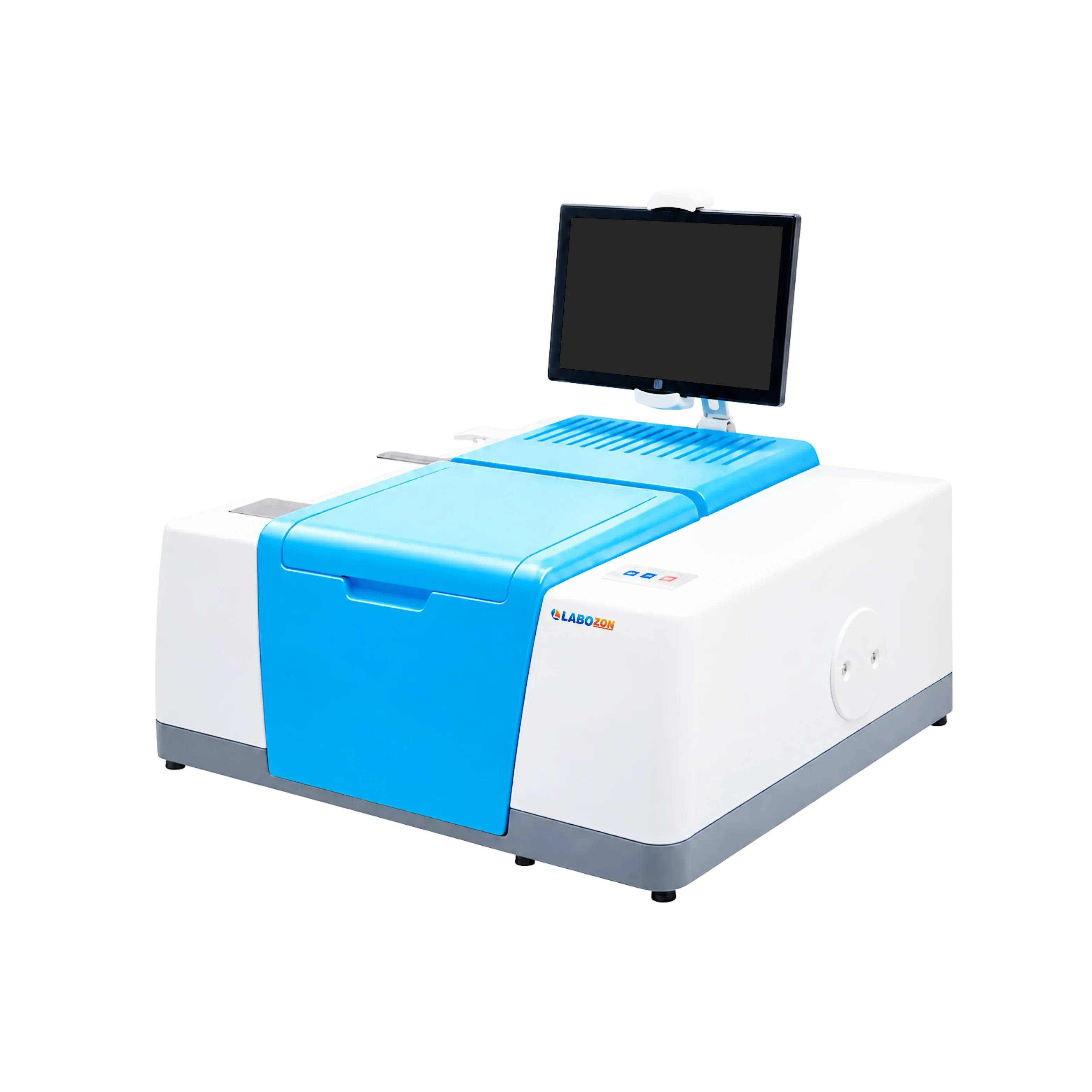

FTIR Spectrometer LZ-FTIR-A100 Series offer wavelength range and real-time monitoring from 7800 cm-1 to 350 cm-1 with DLaTGS detectors for laser characterization. Ideal for the science research analysis, production quality control testing and detection in numerous research sector. The FTIR Spectrometer come with detection & cyberspace connection, instrument design with multiple communication options including ethernet interface as standard supply for data transfer, WIFI wireless communication optional counting setting up a basic platform for remote operation and maintenance, and data cloud computing. Support multiple function by high sensitivity optical system Michelson interferometer combined with patented fixing mirror alignment technology.
| Wavelength Range | 7800 cm-1 to 350 cm-1 |
| SN Ratio | 20,000:1 |
| Resolution | 0.85 cm-1 |
| Interferometer | Cube-corner Michelson interferometer |
| Beam splitter | Multilayer Ge coated KBr |
| IR Source | High intensity, long lifetime, air-cooled IR source |
| Wavelength Accuracy | ±0.01 cm-1 |
| Scanning Speed | Variable scanning speed(Microprocessor Control) |
| Temperature | 0 to 30℃ |
| Humidity | <70% |
| Software | All version window OS-XP,7,8,8.1,10(32 & 64 BITS) |
| Compliance | FDA CFR 21 PART 11(optional) |
| Interface | Ethernet interface(Standard), WIFI wireless communication(Optional) |
| Electrical Requirement | AC220V±22V，50Hz±1Hz |
| Dimension | 520 x 435 x 255mm |
| Weight | 24 kg |
Suitable for science research analysis, production quality control testing and detection in numerous research sector.
Transmission sample holder (Standard)
