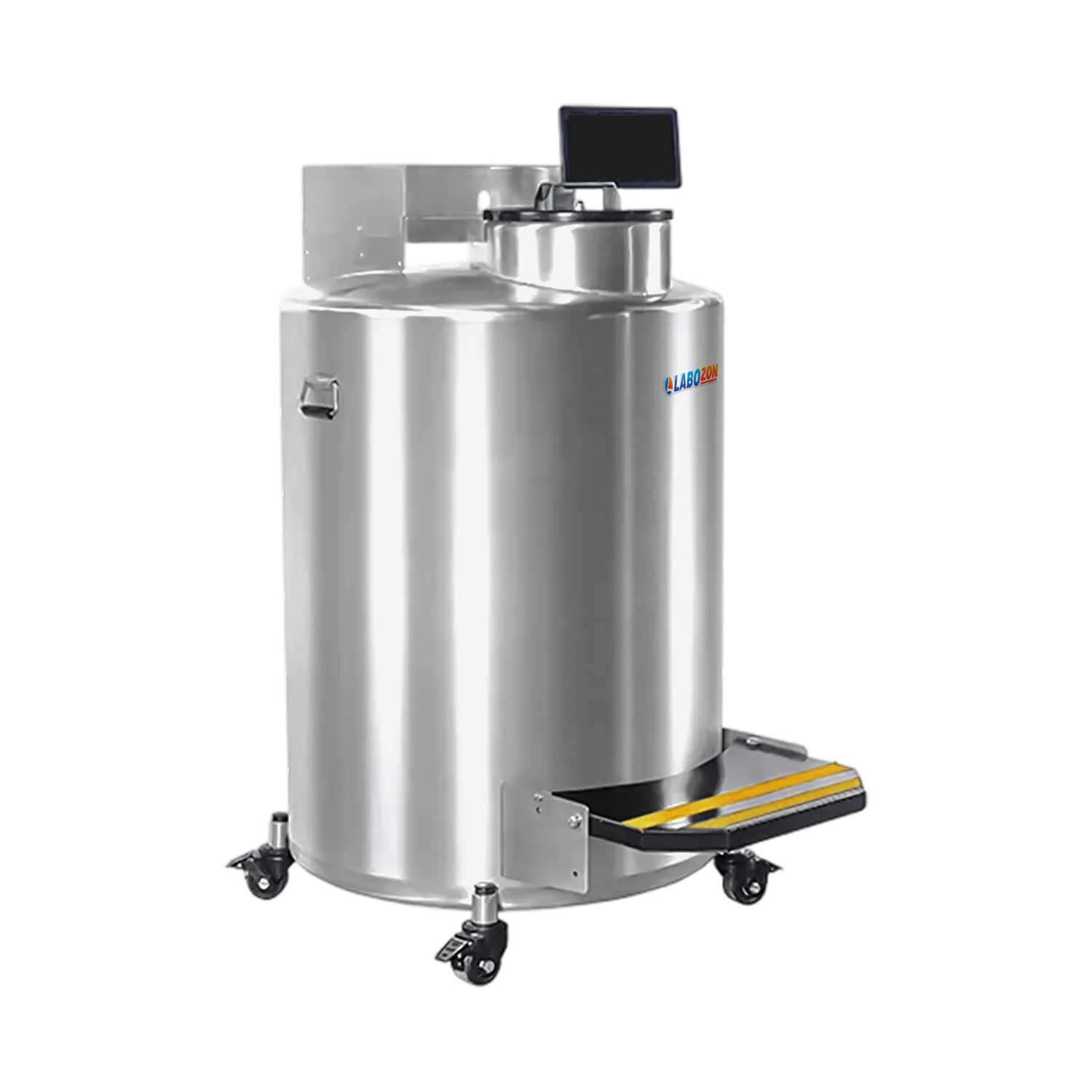

Liquid Nitrogen Tank LZ-LNT-A100
Liquid Nitrogen Tank LZ-LNT-A100 is a high-capacity cryogenic storage system designed for the safe, reliable, and long-term preservation of biological samples. It combines advanced vacuum and multi-layer insulation technology with efficient liquid nitrogen management to maintain stable ultra-low-temperature storage conditions. With a 588 L effective tank capacity and storage for up to 28,000 × 2 ml cryovials, it is well suited for large-scale bio banking and laboratory applications. The rotatable storage section, intelligent monitoring, automatic fluid replacement, and user-friendly access features provide convenient and secure sample management.
Contact our team for bulk pricing and institutional quotations.
details on request
support
documentation
Product Specifications
Technical information for Liquid Nitrogen Tank LZ-LNT-A100.
| Product Name | Liquid Nitrogen Tank LZ-LNT-A100 |
|---|---|
| SKU | LZ-LNT-A100 |
| Bottom Tray Capacity | 125 L |
| Tank Capacity | 588 L |
| Tank Caliber | 445mm |
| Internal Diameter | 590 mm |
| Outer Diameter | 1090 mm |
| Overall Height | 1400 mm |
| Tank Empty Weight | 310 kg |
| Operating Height | 942 mm |
| Full Load Weight | 790 kg |
| Storage Days (Liquid Phase) | 80 |
| Storage Days (Gas Phase) | 17 |
| Door Width | 1140 mm |
| 2 ml Cryovials Capacity | 28,000 cryovials |
| 5×5 Rectangular Handle Bucket Capacity | 16 |
| 10×10 Rectangular Handle Bucket Capacity | 24 |
| Rectangular Bucket Layers | 10 |
| 25 ml blood bags Capacity | 2208 (6 layers*368) |
| 50 ml blood bags Capacity | 1392 (6 layers*232) |
| 250 ml blood bags Capacity | 516 (3 layers*172) |
| 500 ml blood bags Capacity | 288 (3 layers*96) |
| Packing Dimensions | 1470 x 1240 x 1660 mm |
| Gross Weight | 435 kg |
Features
- Large-volume cryogenic storage
- Vacuum insulation
- Automatic nitrogen replenishment
- Rotating storage compartments
- Vapour-phase storage
- A standard vacuum inlet hose
- Foot-pedal operation
- One-touch defogging
Applications
Ideal for cryobanks, hospitals, research institutes, biotechnology laboratories, pharmaceutical facilities, and biobanks for long-term preservation of biological specimens such as cells, tissues, blood, embryos, sperm, stem cells, and other temperature-sensitive samples.
