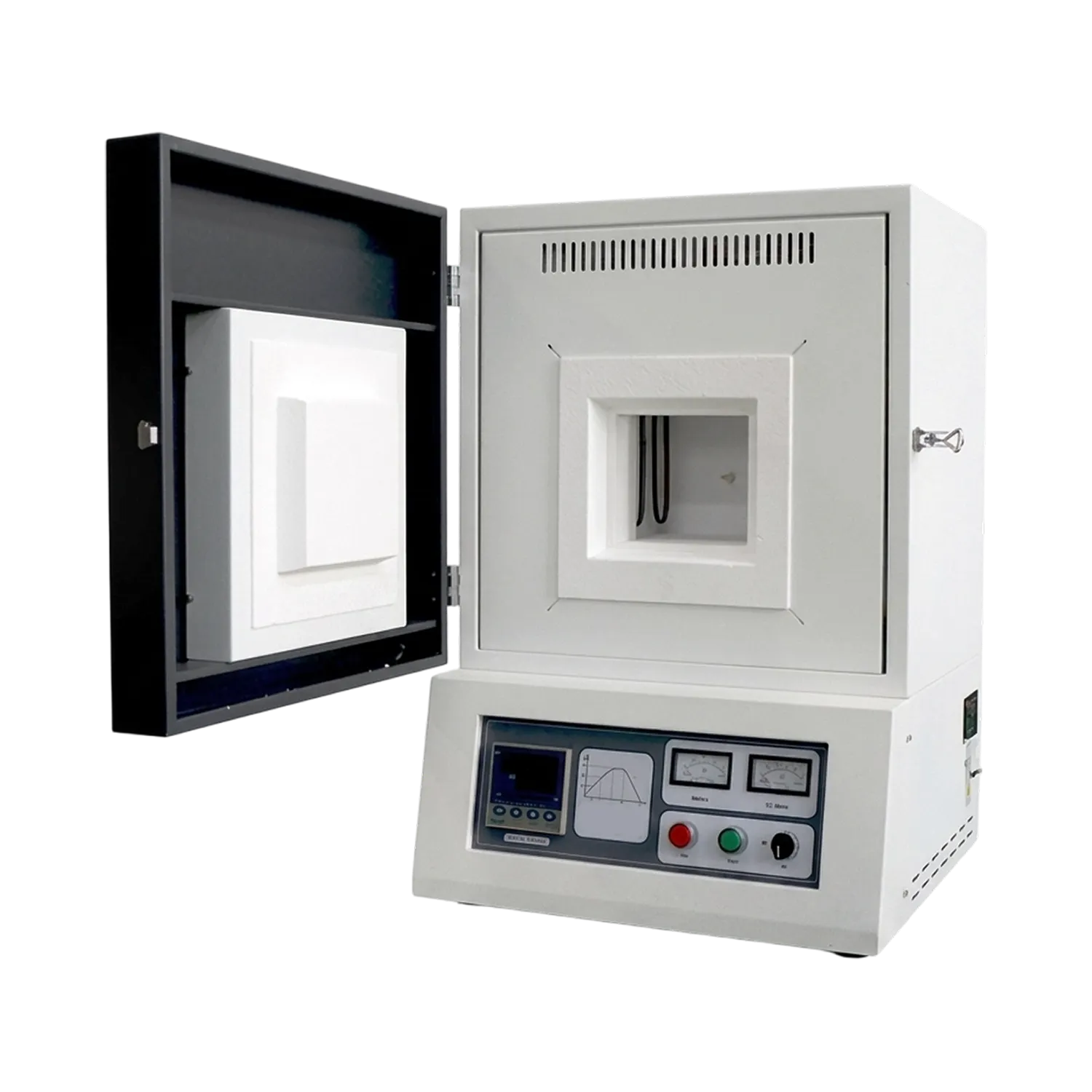

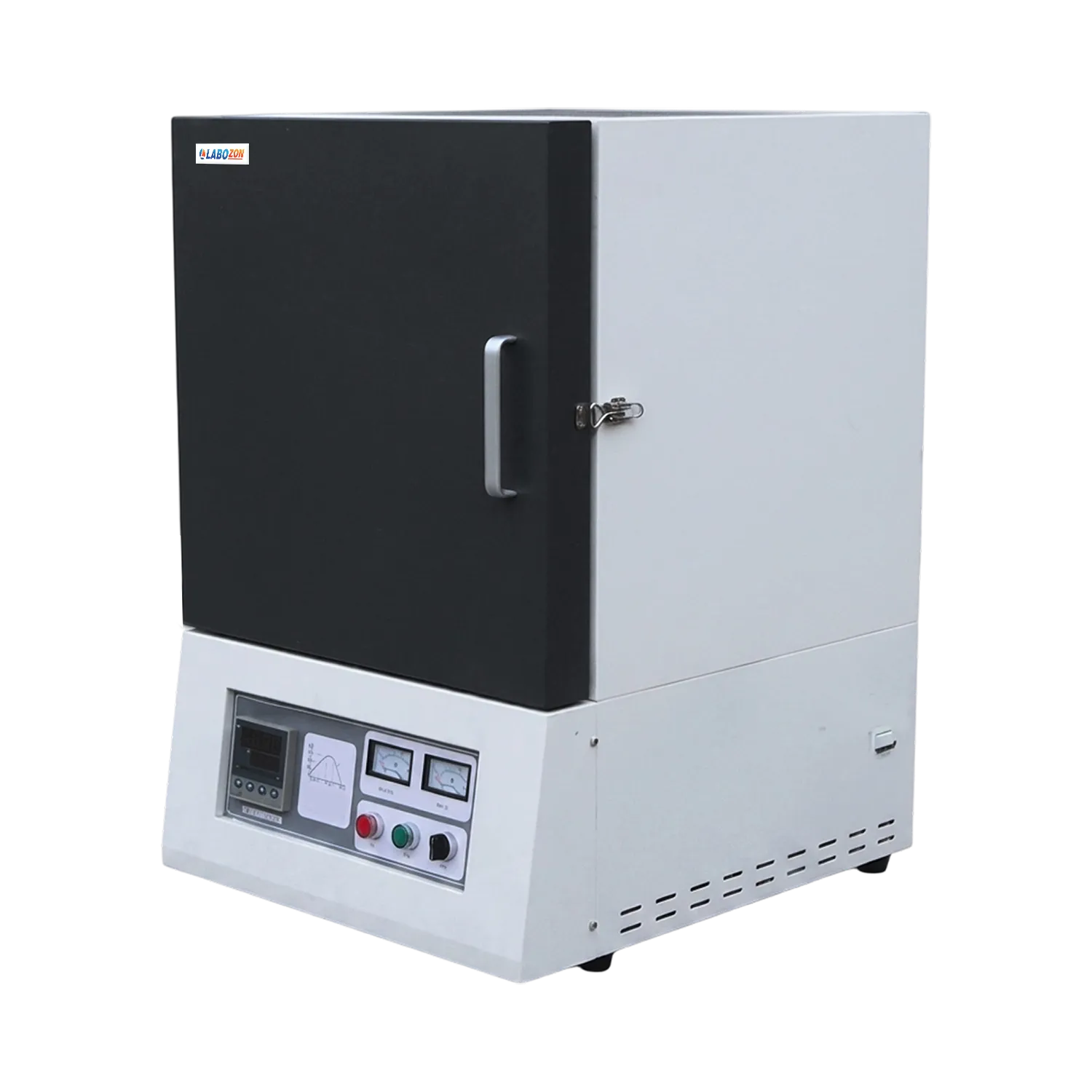

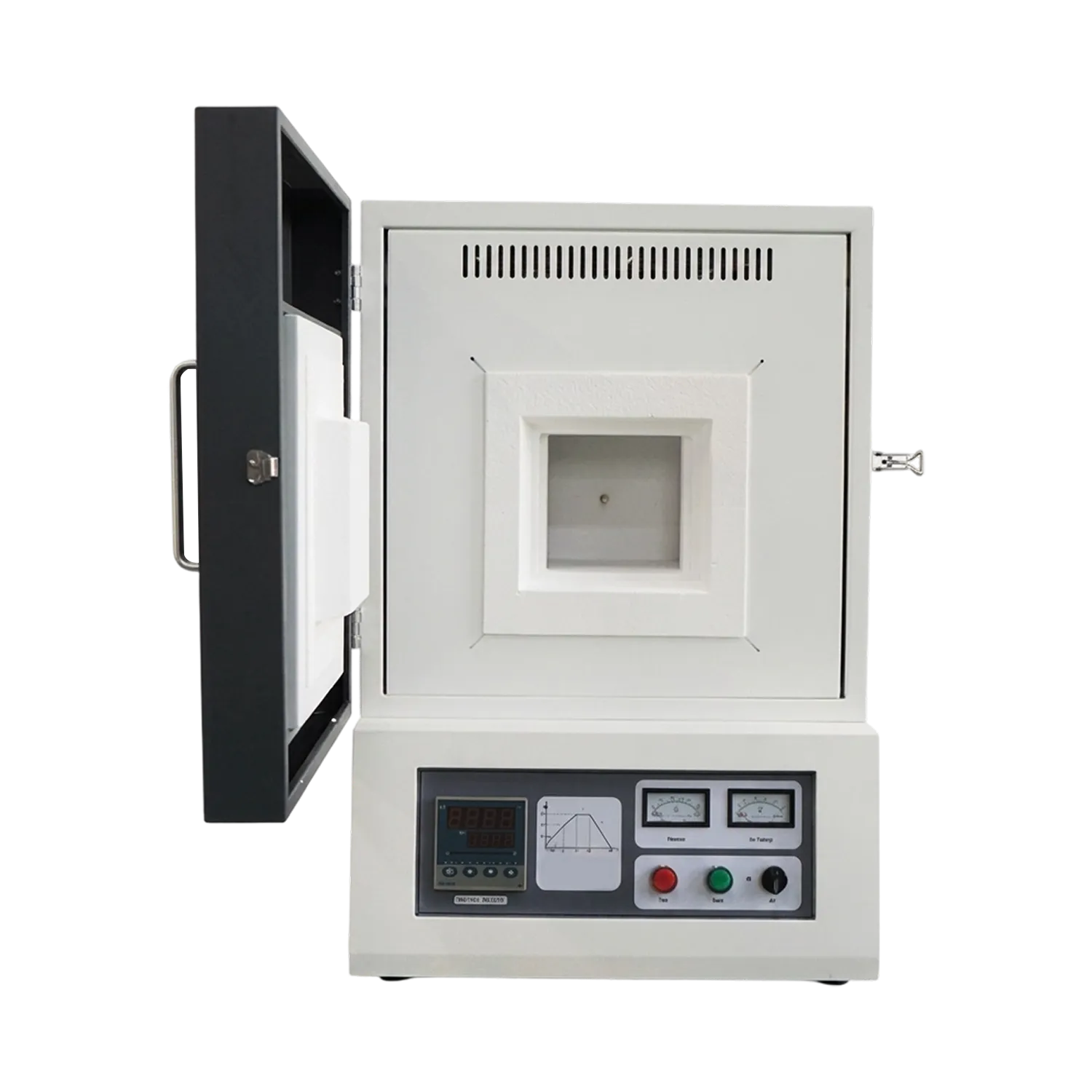

Muffle Furnace LZ-MFF-A501
Muffle Furnace LZ-MFF-A501 is a microprocessor controlled furnace with 1800°C maximum temperature. Furnace is made of high quality ceramic material and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as Mosi2 heating element, B type thermocouple. It has the functions of High-temperature resistance, oxidation resistance, acid and alkali resistance etc. Built with a dual layer housing characterized by excellent thermal insulation effect. It is widely used in sintering of ceramic materials, nanomaterials, semiconductor materials, powder metallurgy and other new materials.
Contact our team for bulk pricing and institutional quotations.
details on request
support
documentation
Product Specifications
Technical information for Muffle Furnace LZ-MFF-A501.
| Product Name | Muffle Furnace LZ-MFF-A501 |
|---|---|
| SKU | LZ-MFF-A501 |
| Capacity | 20L |
| Chamber Dimensions | 250 x 320 x 250 mm |
| Temperature Range | 1800℃ |
| Working Temperature Range | 1750℃ (short time) |
| Continuous Temperature Range | 1720℃ |
| Temperature Precision | ±1℃ |
| Temperature Uniformity | ±5℃ |
| Heating Element | Mosi2 (4 rods) |
| Heating Rate | 5℃~10℃, recommended 5℃~8℃ |
| Material | Alumina ceramic |
| Thermocouple | B-type |
| Display | 7inch LCD touch screen |
| Alarm | Overheat and thermocouple-break alarm |
| Power Consumption | 7KW |
| Power Supply | 220V-50/60HZ, Single Phase |
| External Dimensions | 610 x 730 x 970 mm |
| Packing Dimensions | 910 x 980 x 1210 mm |
| Net Weight | 210 kg |
| Gross Weight | 240 kg |
Features
- Front loading box chamber furnace
- Side opening door
- Mosi2 heating element
- LCD touch screen display
- High quality transformer
- 15 Programs, 30 segments
- PID Controller
- Alarm function
Standard Accessories
- Furnace door block
- Protection Gloves
- Stainless steel crucible tong
- Mosi2 rod heaters
Applications
Muffle Furnace is used in many research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample. The testing device is also used for highly sophisticated metallurgical applications. All types of muffle furnaces work on the basis of conventions, conductions, and with the electrical resistance heating elements.
