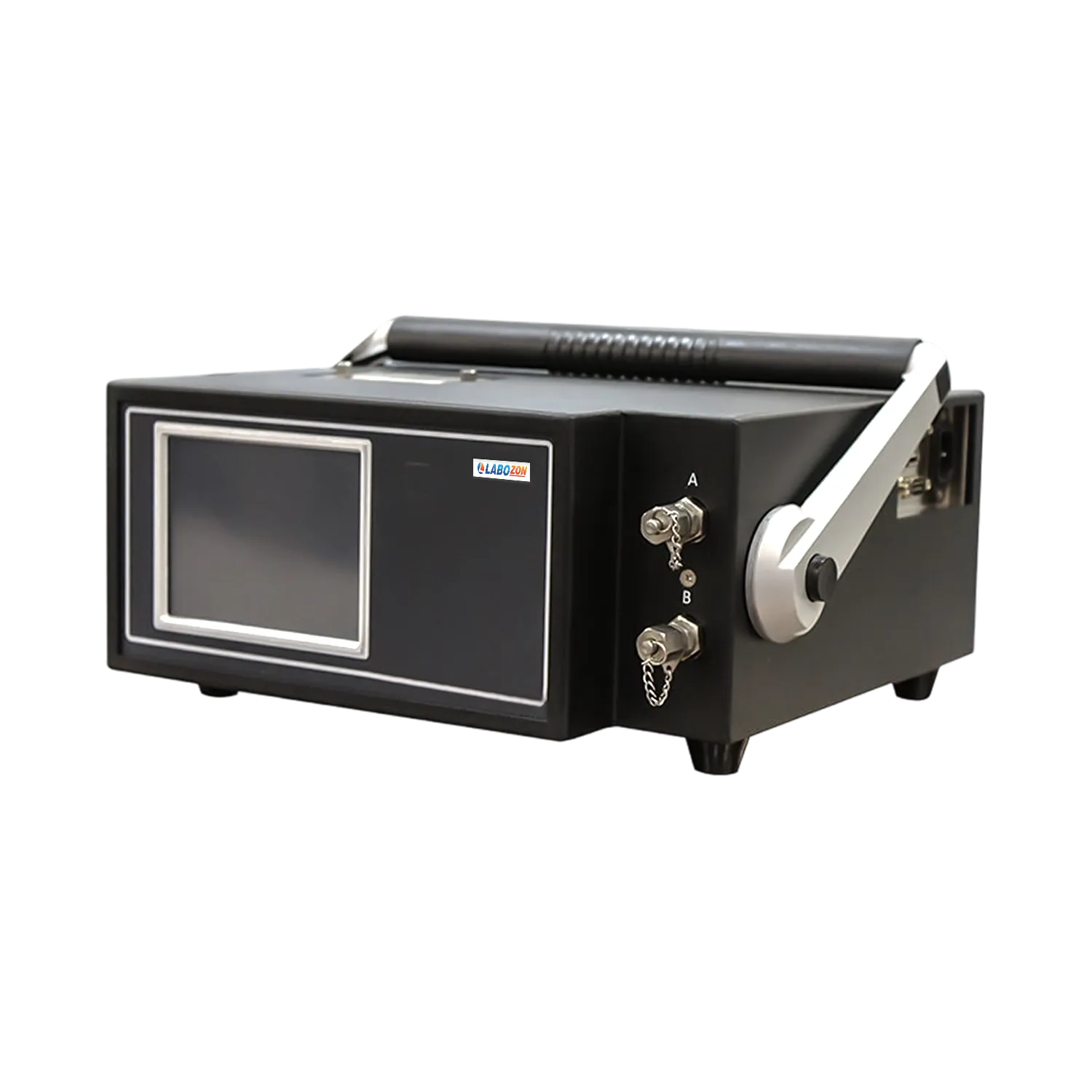

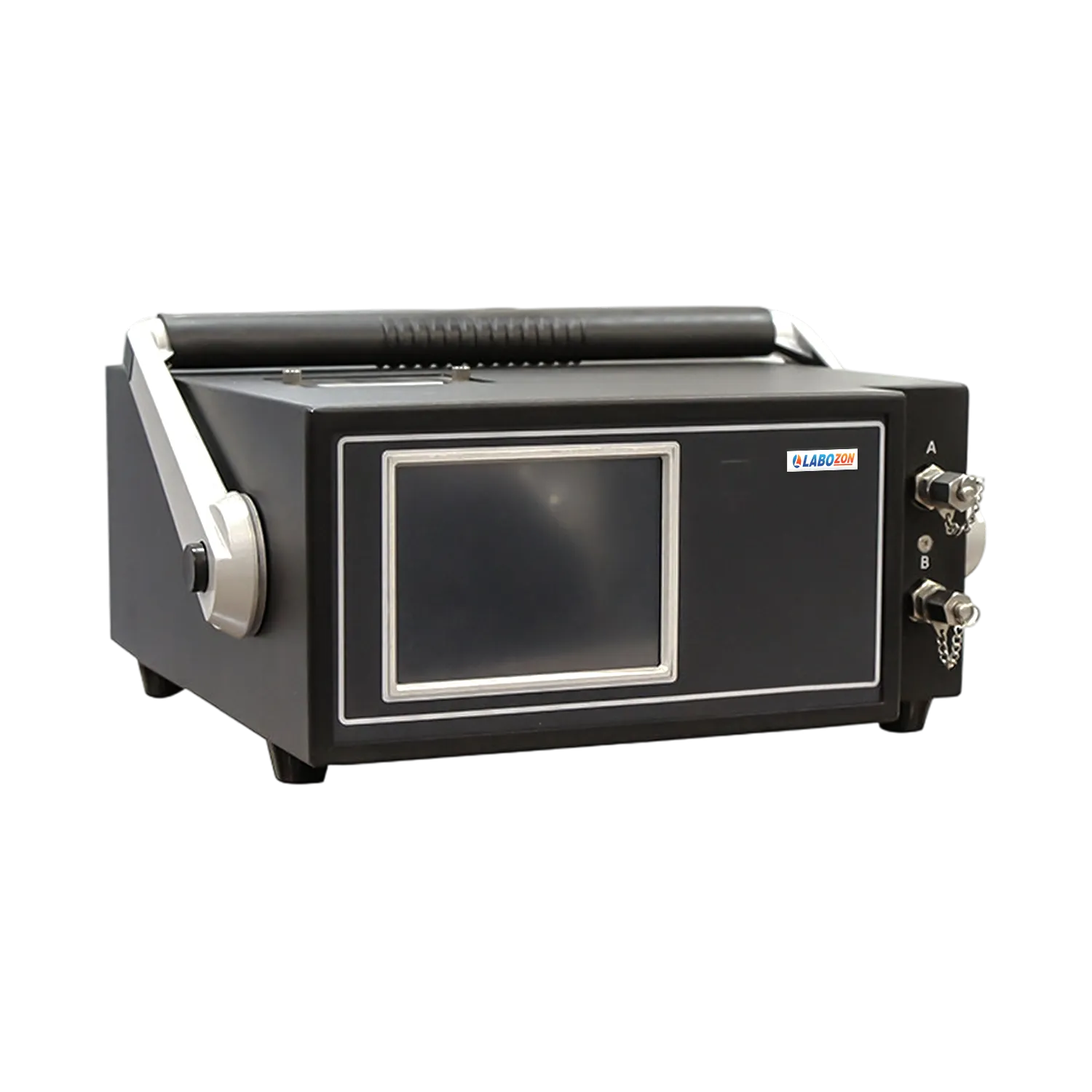

Oil Particle Counter LZ-OPC-A100 designed to measure size and quantity of particles suspended in lubricating or hydraulic oil samples using light resistance method. Measurement spans 0.8 μm to 600 μm across 16 channels, with sampling speeds up to 80ml/min with minimum sampling of 0.2ml. It supports particle contamination analysis according to ISO 4406, helping users assess solid particle contamination levels in hydraulic and other oil samples.
| Measurement Range | 0.8 μm to 600 μm |
| Channels | 16 |
| Sample Volume | ≥0.2ml |
| Sample Speed | 5～80ml/min |
| Resolution | <10% |
| Coincidence Deviation Limit | 40,000 particles/mL |
| Pressure |
Low: 0～6bar 3～420bar |
| Storage | 1000 groups |
| Water Activity | 0 to 1 aw (optional) |
| Water Content | 0 to 360 ppm (optional) |
| Battery | 5200 mAh (6-8 hours) |
| Interface | Built-in printer and RS232 interface |
| Power Supply | AC220V ±10%, 50 Hz, ≤75 W |
| External Dimensions | 490 x 370 x 160 mm |
| Packing Dimensions | 555 x 440 x 290 mm |
| Net Weight | 9 kg |
| Gross Weight | 17 kg |
Oil particle counters are used on a wide range of oil and fluid samples across industries among lubricating oils, hydraulic fluids, coolants and other processing fluids.
