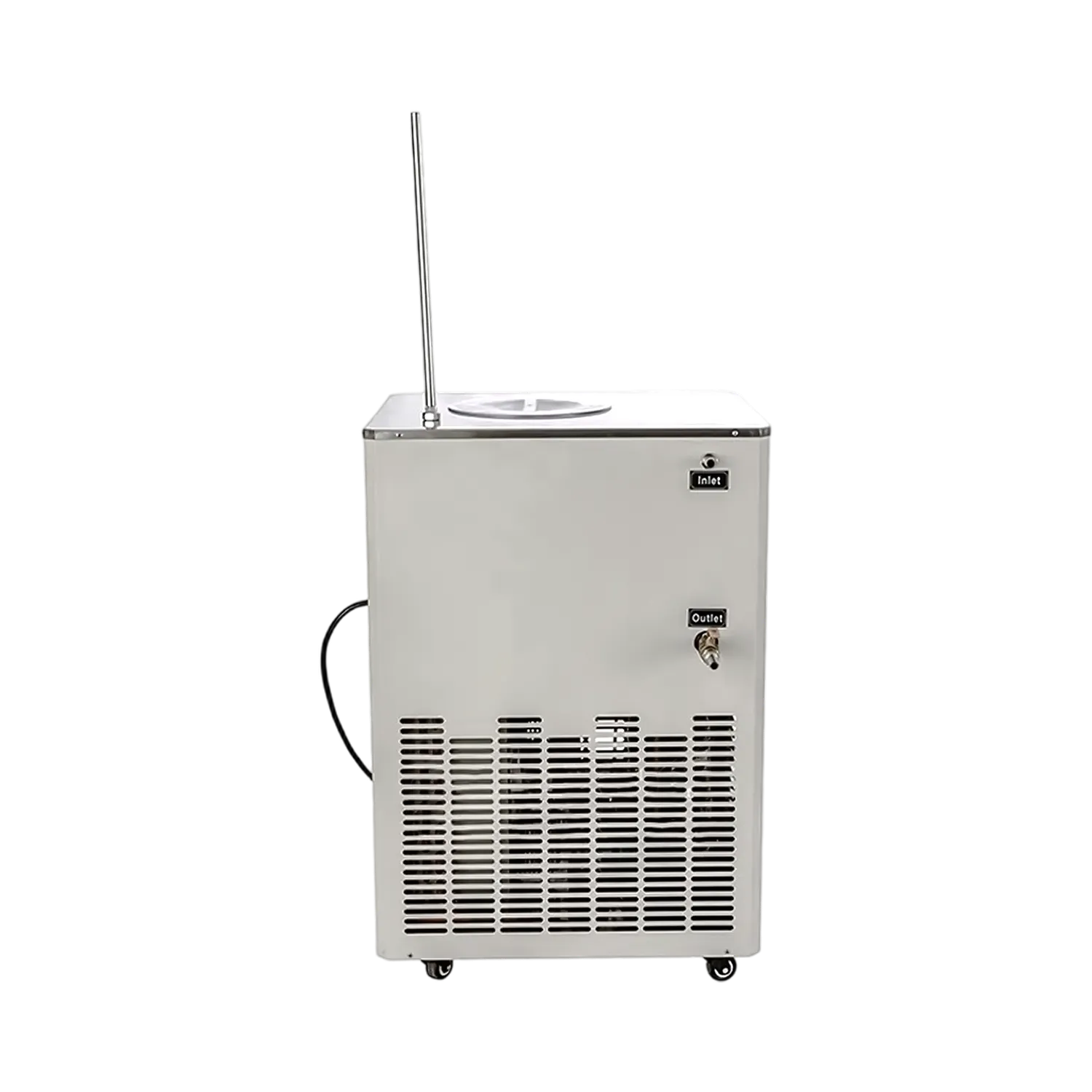

Recirculating Chiller LZ-RCC-A101 is designed to cool reaction vessels and glassware directly, keeping chemical and biological samples stable at low temperature. With a 55 L tank capacity, steel cabinet and temperature down to −30°C, it provides a substantial cooling medium for extended operation. The 20–40 L/min circulation flow enables continuous coolant movement, making it suitable for equipment such as rotary evaporators, reactors, and vacuum systems.
| Volume | 55 L |
| Chamber Dimensions | Φ450×350H mm |
| Temperature Range | -30℃ to RT |
| Ambient Temperature | 5 ~35 ºC |
| Temperature Accuracy | ±0.1°C |
| Humidity | ≤70% ventilation |
| Display | LCD screen , key operation |
| Sensor | PT100 |
| Compressor | 1, 3P type |
| Cooling Capacity of Compressor | 6972 W |
| Compressor Power | 2205 W |
| Circulation Pump Flow | 20-40L/min |
| Circulation Pump Lift | 4-6M |
| Circulation Pump Pressure | ≤0.4MPa |
| Circulation Pump Power | 100 W |
| Air Cooling Condenser | 21.2m2 heating exchange area |
| Air Cooling Condenser Volume | 3400m³/h |
| Refrigerant | R22 |
| Condensation Coil | Φ16 copper tube plated by nickel |
| Total Power | 2485 W |
| Power Supply | Single phase 220V/50Hz/110V 60Hz |
| Dimensions | 795 × 770 × (1150+500) mm |
| Packing Dimensions | 830 x 740 x 1280 mm |
| Gross Weight | 162 kg |
Suitable for rotary evaporators, glass reactors, vacuum freeze-drying equipment, low-temperature reaction processes, pharmaceutical research, chemical laboratories, food research, and scientific research.
