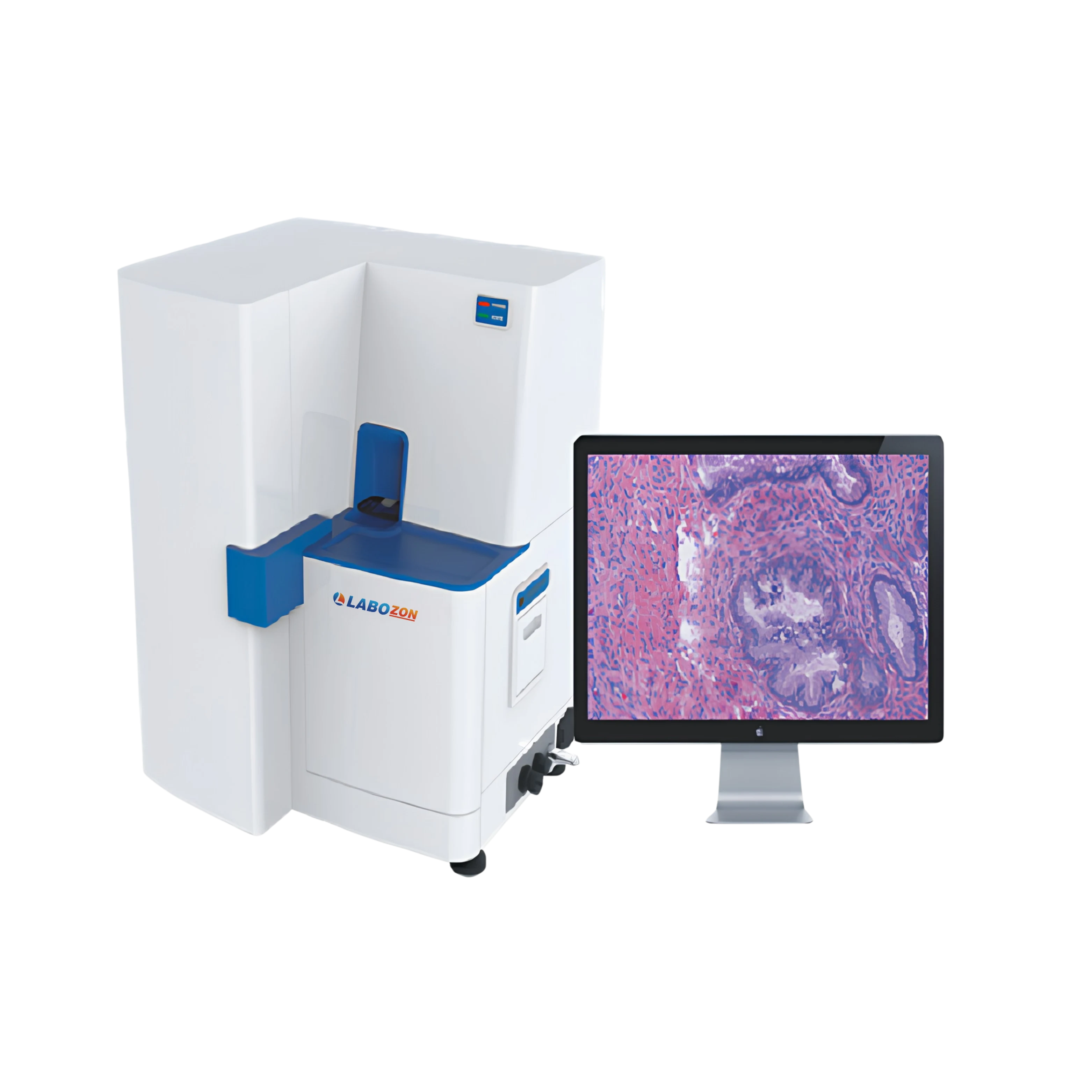

Digital Slide Scanner LZ-DSS-A100 processes up to 120 slides simultaneously. It features a high-quality apochromatic objective lens for 20X or 40X magnification. Advanced pathology management software links digital slides with clinical data for comprehensive analysis. The system supports efficient workflows by handling large volumes of slides while delivering high image quality.
| Capacity | 120 slides |
| Scan Time per Slide | 40 sec / slide (20X, 15mm × 15mm area) 100 sec / slide (40X, 15 mm × 15mm area) |
| Magnification Levels | 20 X / 40 X |
| Scanning Resolution | 0.5µm/pixel (20X), 0.25µm/pixel (40X) |
| Slide Size | 1 × 3 inch / 2 × 3 inch |
| Light Source | LED |
| Scan Method | Line scanning |
| Motion Control | Linear magnetic axis motor control |
| Z-Stack Scanning | Yes |
| Focus Mode | Automatic / Manual |
| Accurate Detection | Yes |
| Label Reading | Bar Code / QR |
| Image File Format | JPEG/JPEG2000/BMP/TIFF |
| Package Dimensions (Box 1) | 840 × 790 × 910 mm |
| Package Dimensions (Box 2) | 800 × 580 × 870 mm |
| Gross Weight | 160 Kgs |
Processor: CPT Intel Core I7 or above
Hard Disk: 1 TB or above
Memory: 16 GB or above
Monitor: 24 inches Monitor or above
Digital Slide Scanner is utilized in medical diagnostics, research labs, and educational institutions, supporting analysis across biological, pathological, histological, bacterial, immune, pharmacological, life science, and genetic fields
Request a Quote
Slide scanners provide high-resolution imaging for precise analysis of microscope slides. With advanced optical systems, our device captures detailed and accurate images with exceptional clarity. They feature automatic focus and high-speed scanning for efficient operation. The intuitive software integrates seamlessly into your workflow. Ideal for both research and clinical applications, our slide scanners offer efficient slide digitization and reliable results.
