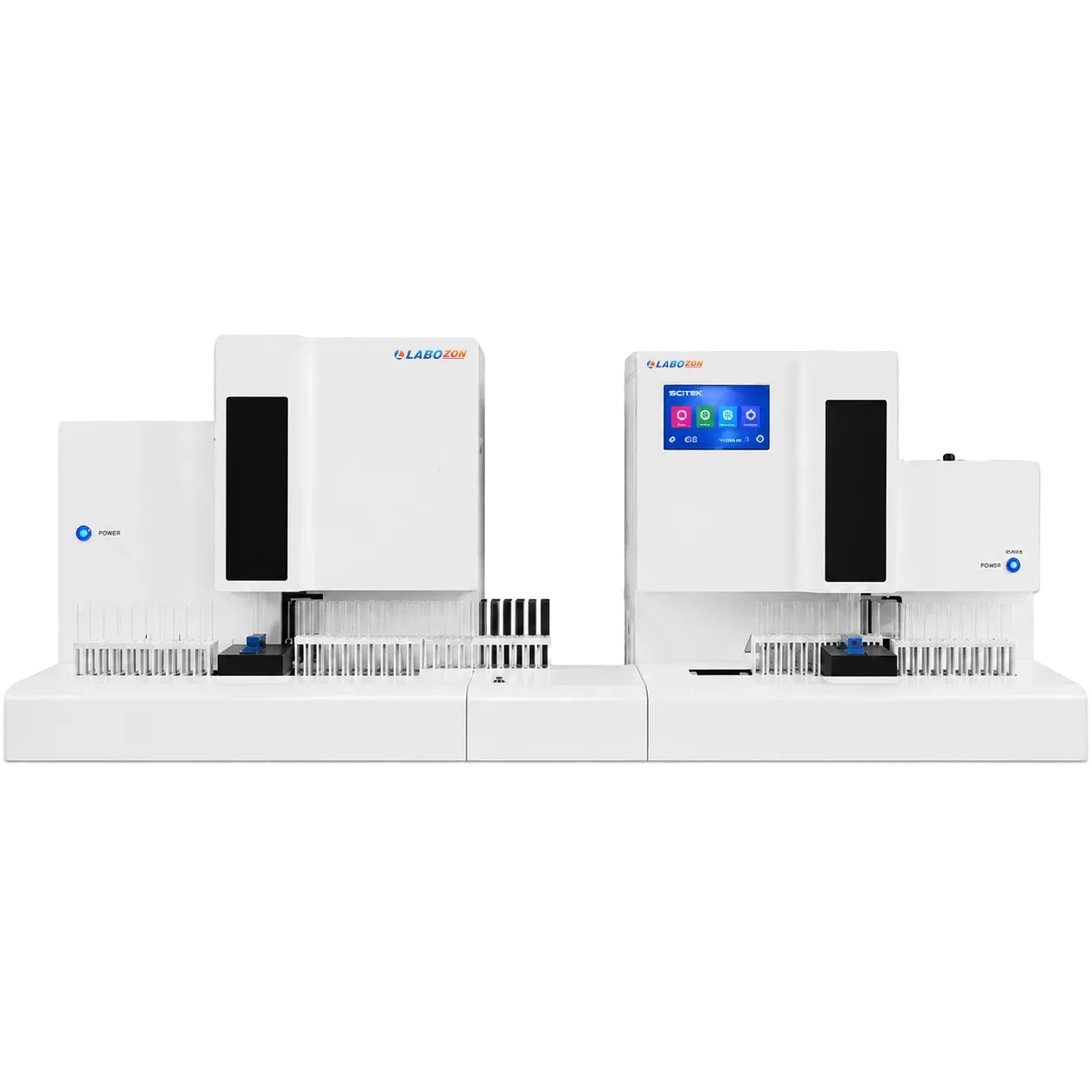

Urine Analyzer LZ-UA-A105

Urine Analyzer LZ-UA-A105 is an advanced urine chemistry analyzer designed for rapid and accurate analysis of urine test strips in clinical laboratories. Operating at a throughput of 240 strips per hour with a 50-sample on-board capacity, it automates sample loading, aspiration, strip analysis, and report generation to minimize manual intervention. Utilizing the photoelectric colorimetric method, the analyzer accurately measures up to 14 urine parameters, providing reliable results for routine urinalysis in hospitals, diagnostic centers, and research laboratories.

Urine Analyzer LZ-UA-A105 - Specifications

Test Parameters Urobilinogen(URO), Bilirubin(BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocytes(LEU), Glucose(GLU), Specific Gravity(SG), PH(pH), Ascorbic Acid(VC), Micro albumin(MAL), Creatinine(CRE), Calcium(CAL)
Test Principle Photoelectric colorimetric method
Sample Volume Minimum volume: 3ml
Aspiration Volume Less than 1ml
Test Speed 240 strips/hour (15 seconds/strip)
Sample Capacity 5 racks of 10 tubes (50 samples)
Data Storage 20000
Interface RS232
Printer Thermal printer
Operating Temperature 15°C-35°C
Ambient Temperature 20-25°C
Relative Humidity ≤75%
Fuse 250V 2A
Power Consumption 300VA
Power Supply AC 220V, 50Hz
External Dimensions 660 x 625 x 581 mm
Packing Dimensions 785 x 570 x 1015 mm
Net Weight 65 kg
Gross Weight 85 kg

Urine Analyzer LZ-UA-A105 - Key Features

Urine Analyzer LZ-UA-A105 - Applications

Used for routine urine chemistry analysis, including glucose, protein, blood, bilirubin, ketones, leukocytes, nitrite, pH, specific gravity, creatinine, microalbumin, calcium, and other diagnostic parameters for rapid clinical evaluation.
