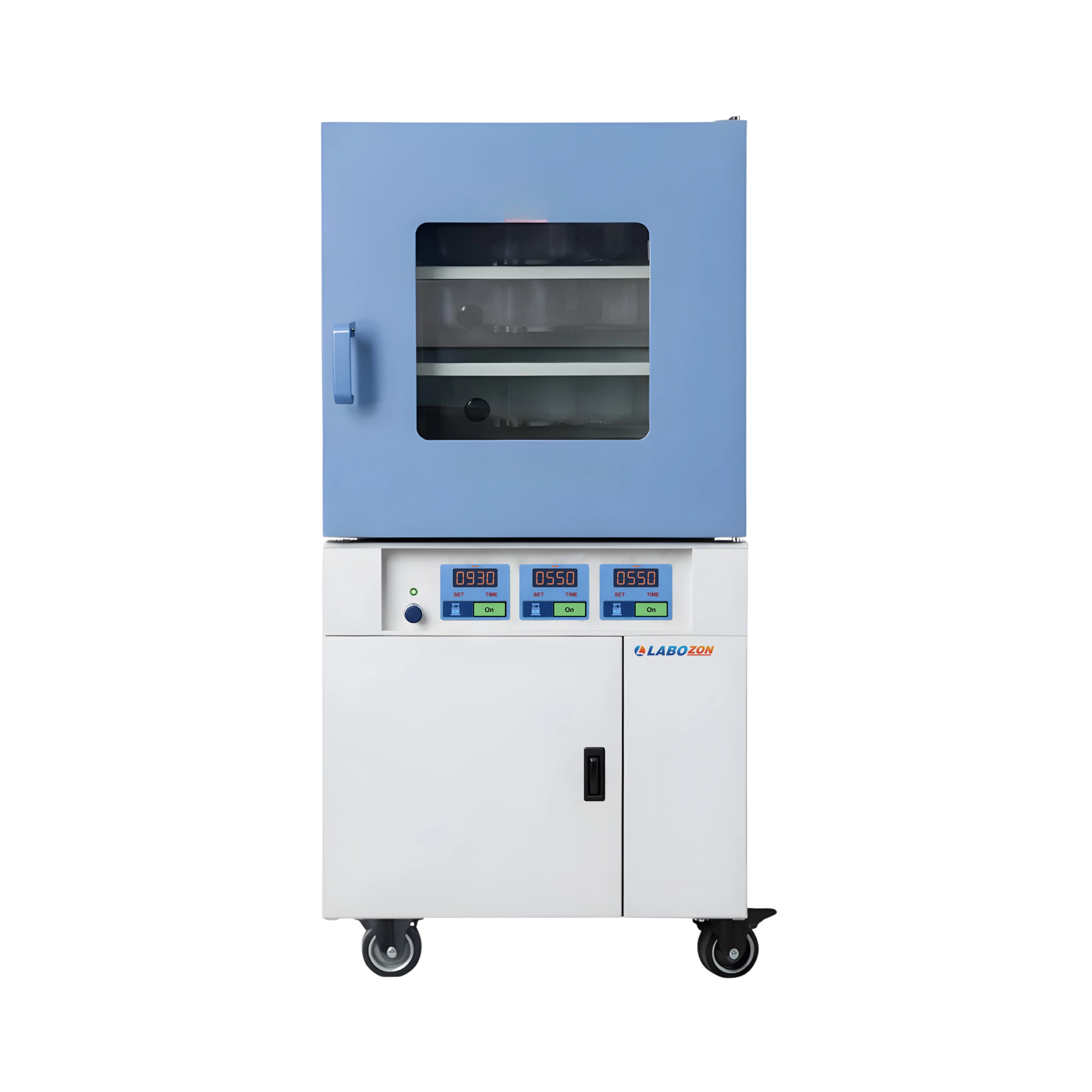

Vacuum Oven LZ-HVO-A102

Name: Vacuum Oven LZ-HVO-A102
Brand: Labozon
SKU: LZ-HVO-A102
Availability: InStock
Rating: 4.0 (739 reviews)

Vacuum Oven LZ-HVO-A102 offers 91 L chamber capacity design with dual layer tempered glass door for clear observation of the sample during process. Features independent temperature controlling 02 pcs of stainless steel shelves, LCD vacuum degree window. The chamber made up of 304 Stainless steel (1Cr18Ni9Ti) and painted with coating to prevent corrosion. Vacuum oven adopts the digital technique of simulated engineering to control vacuum degree. Designed for drying of materials that are heat sensitive, reactive with oxidation reactions, prone to contamination due to excess water level. For the rapid drying of the materials, the controlled atmosphere can be created using the inert gases.

Vacuum Oven LZ-HVO-A102 - Specifications

Chamber volume

91 L

Temperature range

RT+10 to 200℃

Temperature resolution

0.1℃

Temperature stability

±1℃

Display

LCD

Vacuum Degree

133 Pa

Vacuum Sensor

Resistance silicon tube pressure sensor

Vacuum Control Range

10 to 10⁵ Pa

Observation window

Dual layered tempered glass

Chamber material

304 Stainless steel (1Cr18Ni9Ti)

Shelves

2pcs (Independent temperature control)

Power Consumption

1350 W

Power supply

AC 220, 50 Hz

Interior dimension (W × D × H)

450 × 450 × 450 mm

Exterior dimension (W × D × H)

610 × 590 × 135 mm

Packing dimension (W × D × H)

750 × 720 × 1540 mm

Net weight

160 kg

Gross weight

168 kg

Vacuum Oven LZ-HVO-A102 - Key Features

Designed with programmable vacuum cycle
Microprocessor controller with timing function
Suitable for drying thermo-sensitive material
Designed with LCD vacuum degree window
Dual layer tempered glass door for clear observation
Fully automatic electromagnetism valve to control vacuum degree
Oven adopted with digital technique of simulated engineering to control vacuum degree
Chamber is made up of 304 Stainless steel (1Cr18Ni9Ti)
Rapid time of Heating- its minimum heating time 50 %
Equipped with independently displayed and controlled temperature in setting
Monitoring and timing are more accurate and stable

Vacuum Oven LZ-HVO-A102 - Applications

Vacuum Oven is used for drying of thermo-sensitive, laboratory research, engineering, and industry oxidative materials easily. It can be filled with inert gases for a rapid drying of some compound material across used for delicate drying processes, such as drying tiny parts or removing flammable solvents.
