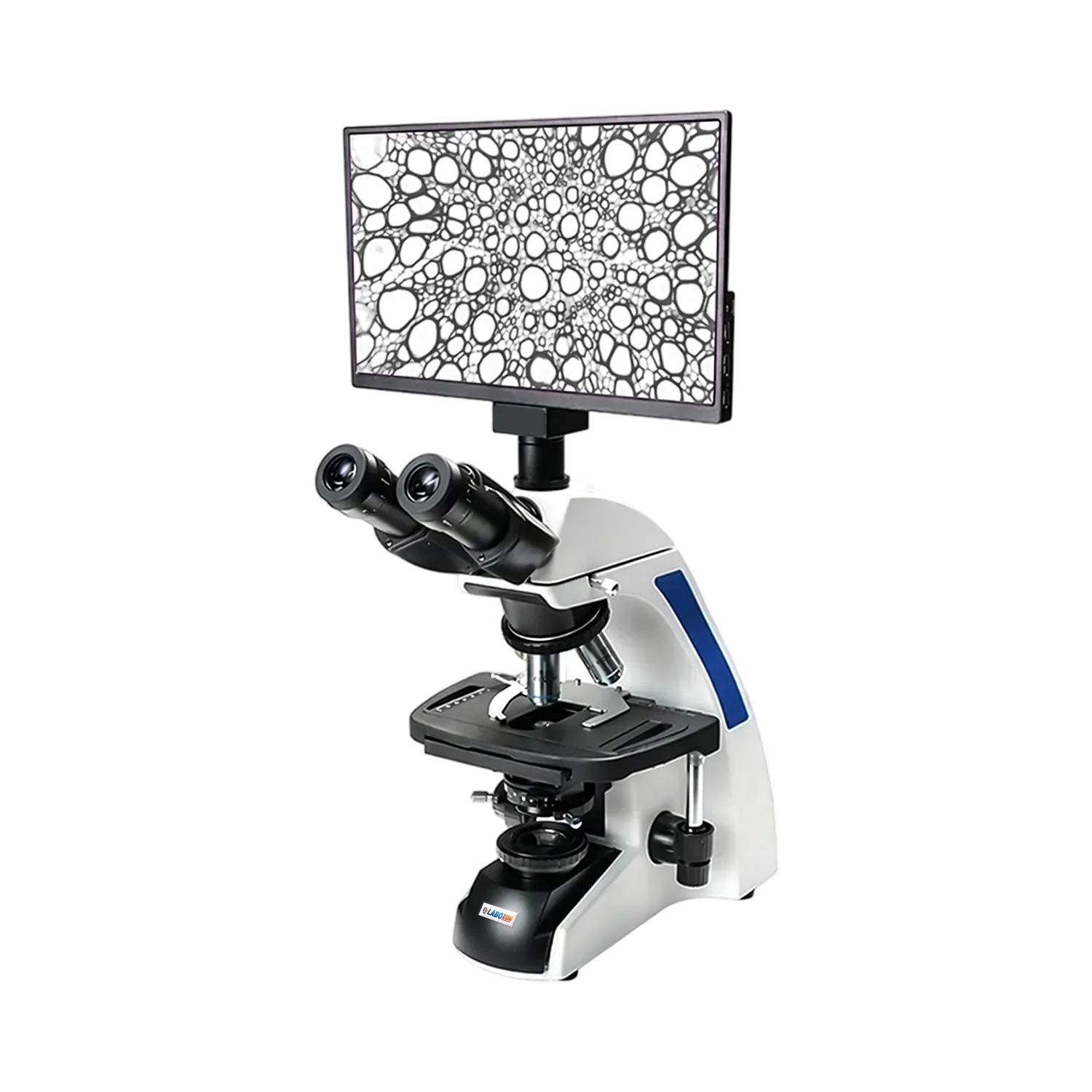

Biological Microscope LZ-BM-A125

Biological Microscope LZ-BM-A125 is a versatile laboratory microscope designed for high-resolution observation of biological specimens in educational, clinical, and research settings. Equipped with an infinity optical system, wide-field eyepieces, and Infinite achromatic objectives, it delivers sharp, high-contrast images across multiple magnifications. Its ergonomic binocular viewing head, precision coaxial focusing mechanism, adjustable LED illumination, and mechanical stage ensure comfortable operation and accurate specimen positioning for routine microscopy applications.

Biological Microscope LZ-BM-A125 - Specifications

Optical System Infinite Optical System
Viewing Head Inclined 30° trinocular viewing head, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80.

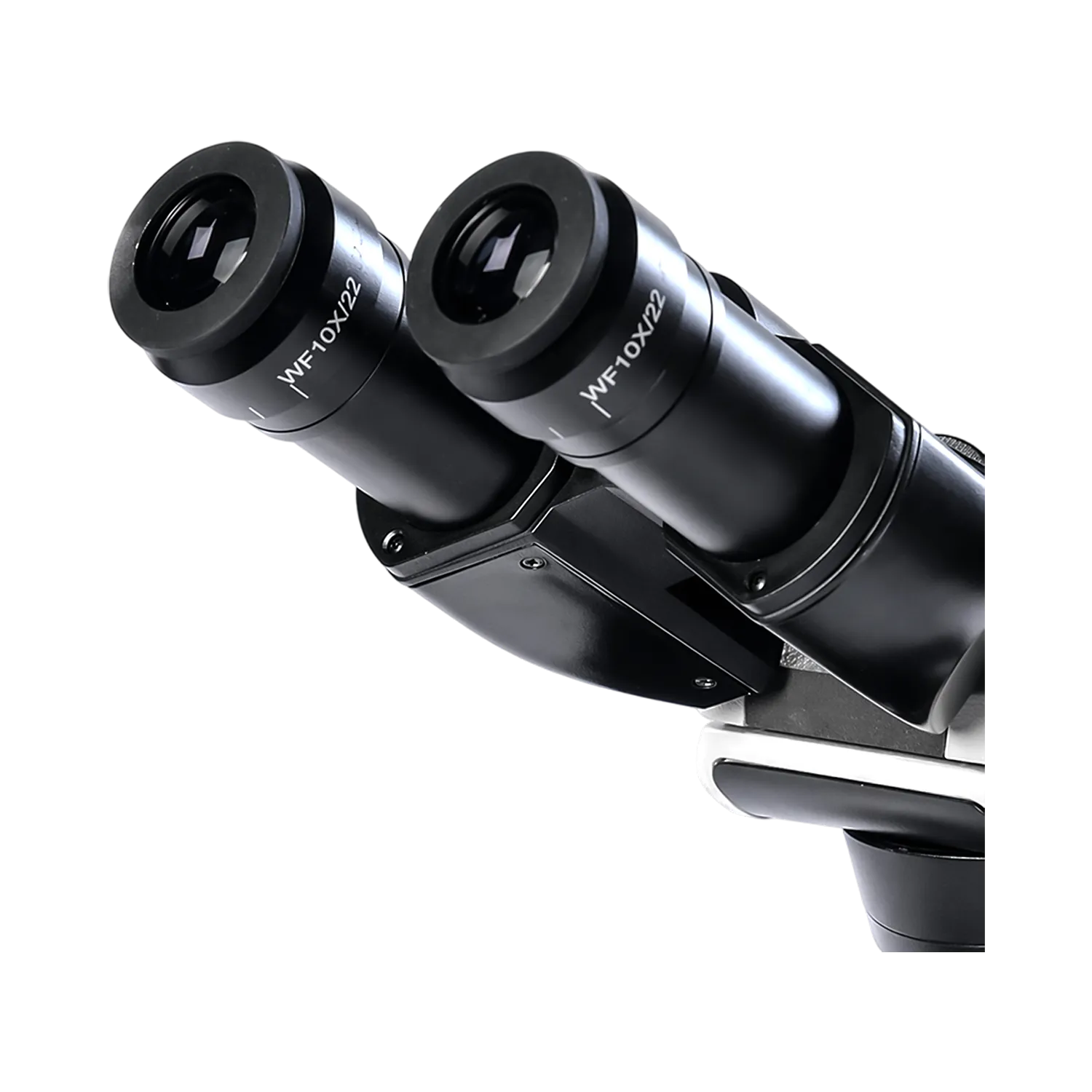

Eyepiece Wide field eyepiece WF10X/22mm
Objectives 4X/NA=0.1, WD=20.49mm
10X/NA=0.25, WD=14.51mm
40X (S)/NA=0.65, WD=0.24mm
(Oil) 100X (S)/NA=1.25, WD=0.15mm
Nosepiece Quadruple nosepiece
Focus Coaxial coarse and fine focusing system
Travel Range 24 mm
Coarse Stroke 37.7mm/rotation
Fine Stroke 0.1mm/rotation
Fine Precision 0.002mm

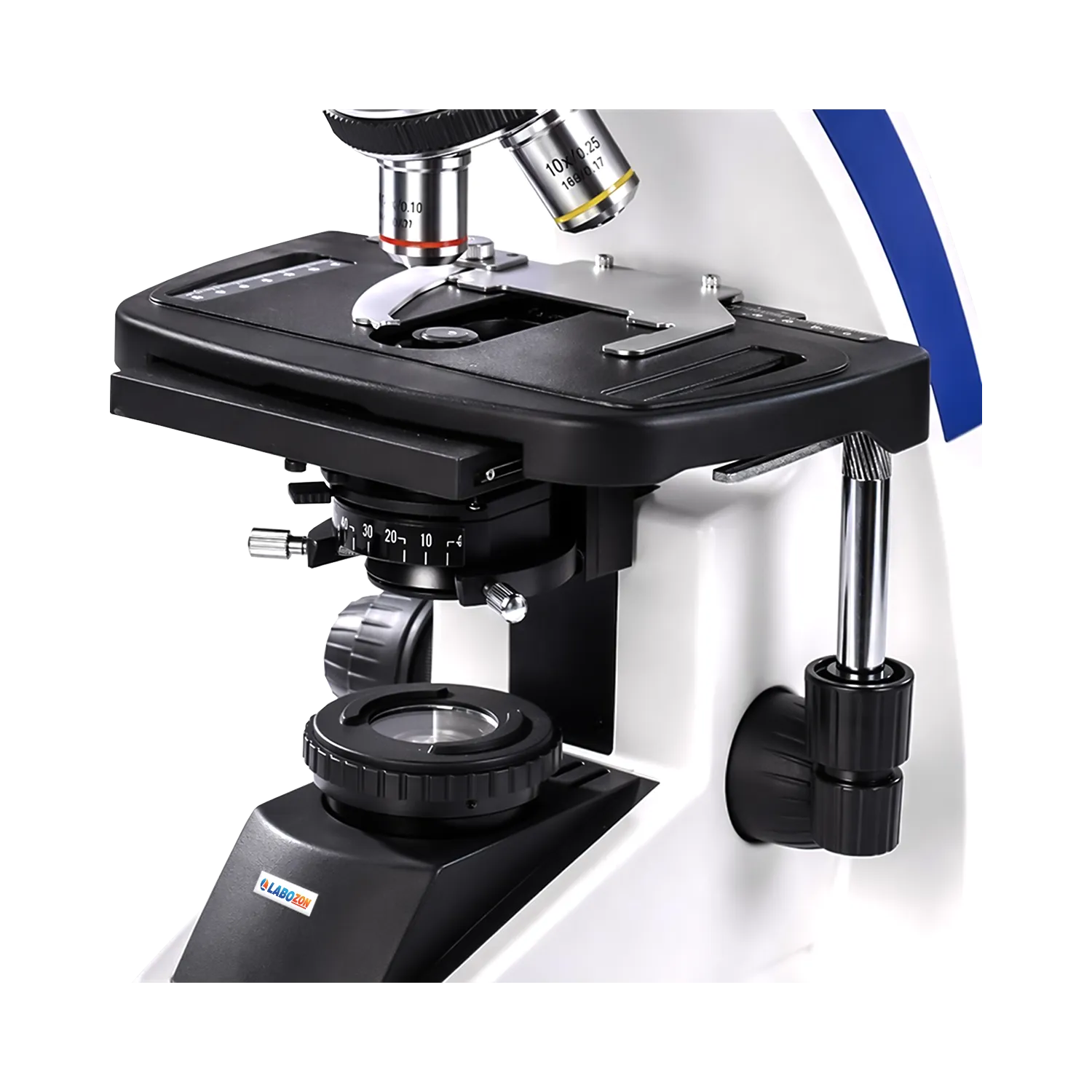

Stage Type: Double-layer mechanical stage
Size: 142*132 mm
Travel Range: 75mm*50mm
Illumination Kohler illumination, 3W LED lamp, brightness adjustable

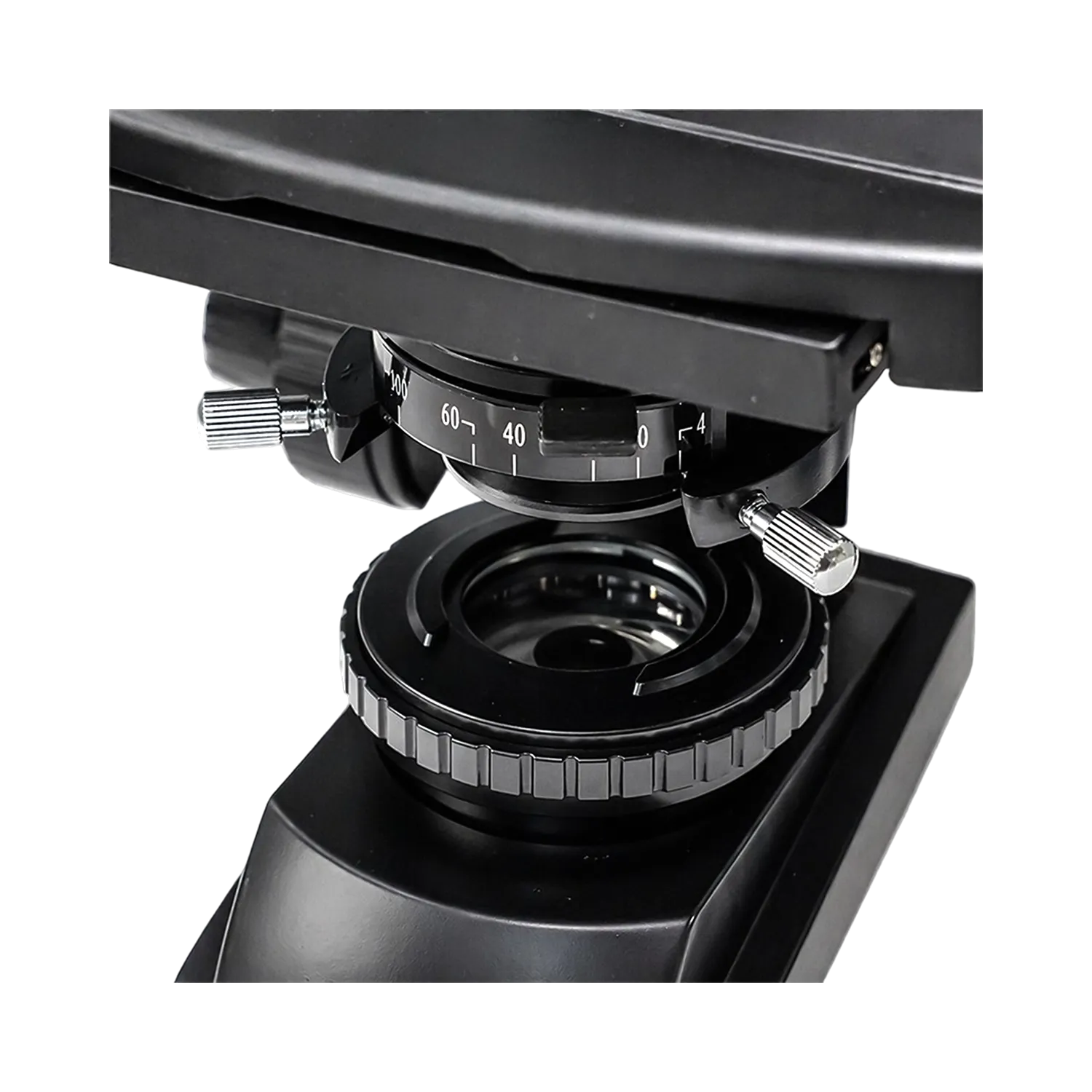

Condenser Abbe condenser NA 1.25 with diaphragm, with filter
C-mount Adapter 0.5X C-mount adapter
Packing Dimensions 520 x 315 x 385 mm
Net Weight 7 kg
Gross Weight 9.3 kg

Biological Microscope LZ-BM-A125 - Key Features

Biological Microscope LZ-BM-A125 - Optional Accessories

Request a Quote
