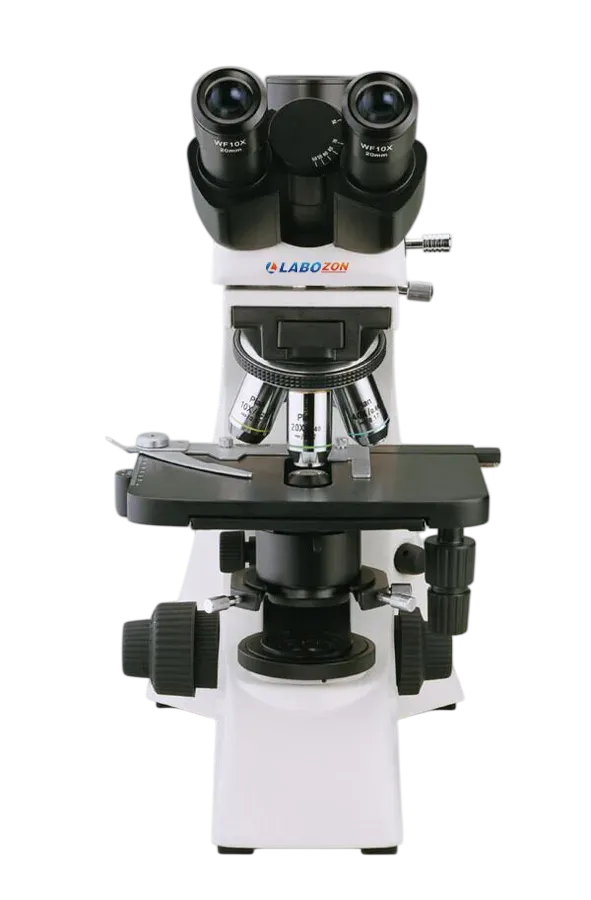

Biological Microscope LZ-BM-B130 has the design of Seidentopf Binocular Head, inclined at 30°, Interpupillary 50-75mm. Features Infinite plan objective. Microscope design also offers a Backward Quintuple Nosepiece, built-in Koehler transilluminator , Abbe achromatic condenser (N.A.1.25) with High eyepoint wide field eyepiece. Low position Coaxial coarse and fine focusing adjustment.
| Viewing Head | Seidentopf Binocular Head, 30° inclined, 360° rotation, interpupillary distance: 50-75mm |
| Eyepiece | WF10X/20mm |
| Nose piece | Quintuple |
| Objective | Infinite Plan objective 4x, 10x, 20x, 40x(s), 100x |
| Stage |
Double layer mechanical stage with removable slide holder 180 x 145mm Travel area 76x52 mm with a right hand stage handle |
| Condenser | Abbe Condenser N.A 1.25 with Iris diaphragm |
| Focusing | Coaxial coarse and fine focusing, Focus interval 0.002mm |
| Illumination | Built in Koehler illuminator, 3W LED or Halogen 6V/20W, adjustable brightness, field diaphragm |
| Power Supply | 85V-265V Universal |
| Packing Dimensions | 542 ×265 ×355 mm |
| Gross Weight | 12 kgs |
Biological Microscope used in biological, pathological, histological, bacterial, immune, pharmacological, and genetic fields.
