Digital Microscope LZ-DM-A150

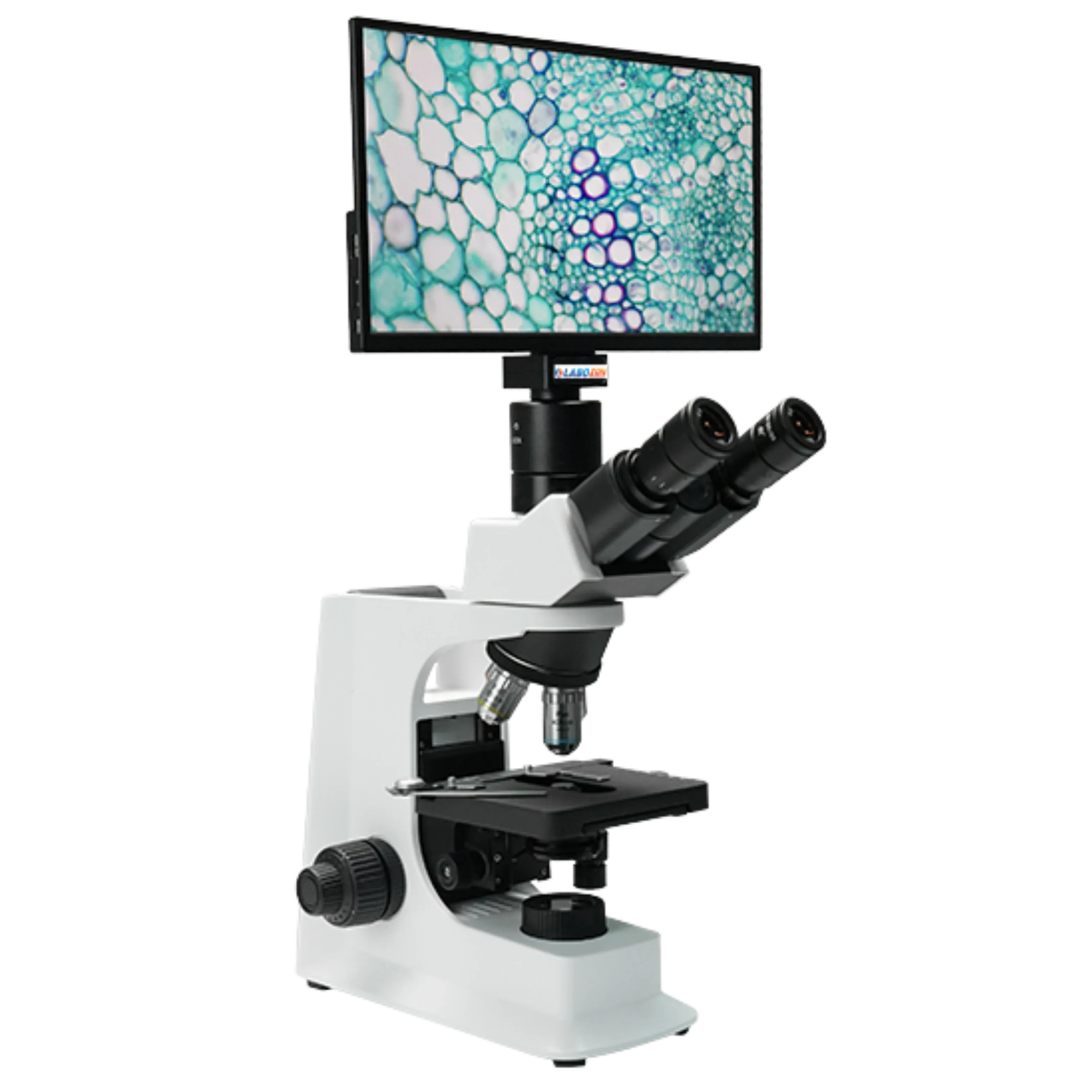

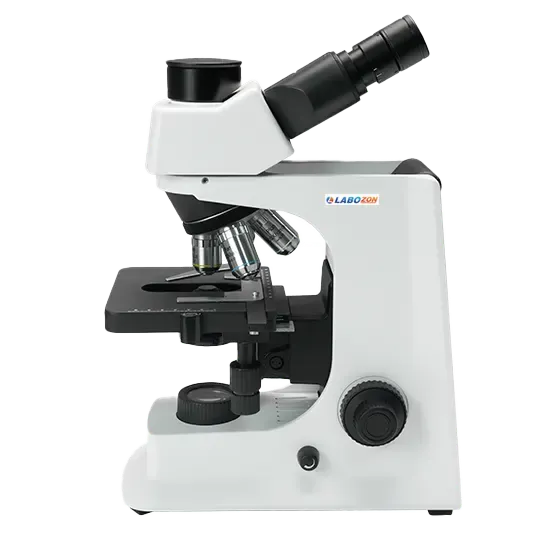

Digital Microscope LZ-DM-A150 is a new generation LCD digital microscope designed for modern laboratory and educational applications. It integrated advanced optical performance with a built in imaging system, enabling direct observation, image capture and analysis on a 13.3-inch LCD touch screen. Featuring a trinocular viewing head, achromatic objectives, it delivers sharp and reliable magnification for detailed sample examination. Integrated all in one camera supports full HD output, android based platform, allowing easy image processing, measurement and data handling. With energy efficient LED illumination and stable mechanical stage makes it ideal for schools, hospitals, research laboratories and field applications requiring digital documentation and real time analysis.

Digital Microscope LZ-DM-A150

Digital Microscope LZ-DM-A150 - Specifications

Optical System Infinite optical system
Viewing Head Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80
Eyepiece High eyepoint wide field eyepiece WF10X/20mm
Objective Infinite Achromatic Objective Plan 4X, 10X, 40X (S), 100X (Oil) (S)
Nosepiece Backward Quadruple Nosepiece
Stage Double layers mechanical stage, size: 145mm*140mm, cross travel 76mm*52mm, scale 0.1mm, two slide holders
Focusing Coaxial coarse & fine focusing knobs, travel range: 26mm, Scale:2um
Condenser Abbe condenser NA1.25 with iris diaphragm
Illumination 3W LED lamp, brightness adjustable
Adapter Video 0.5X C-mount adapter, adjustable focus
Camera LCD Digital Camera with 13.3inch LCD touch screen
Dimensions Microscope: 320 x 280 x 430 mm
Camera: 430 x 220 x 280 mm
Weight Microscope: 6.5kg
Camera: 2.3 kg

Digital Microscope LZ-DM-A150 - Key Features

Digital Microscope LZ-DM-A150 - Applications

Ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
