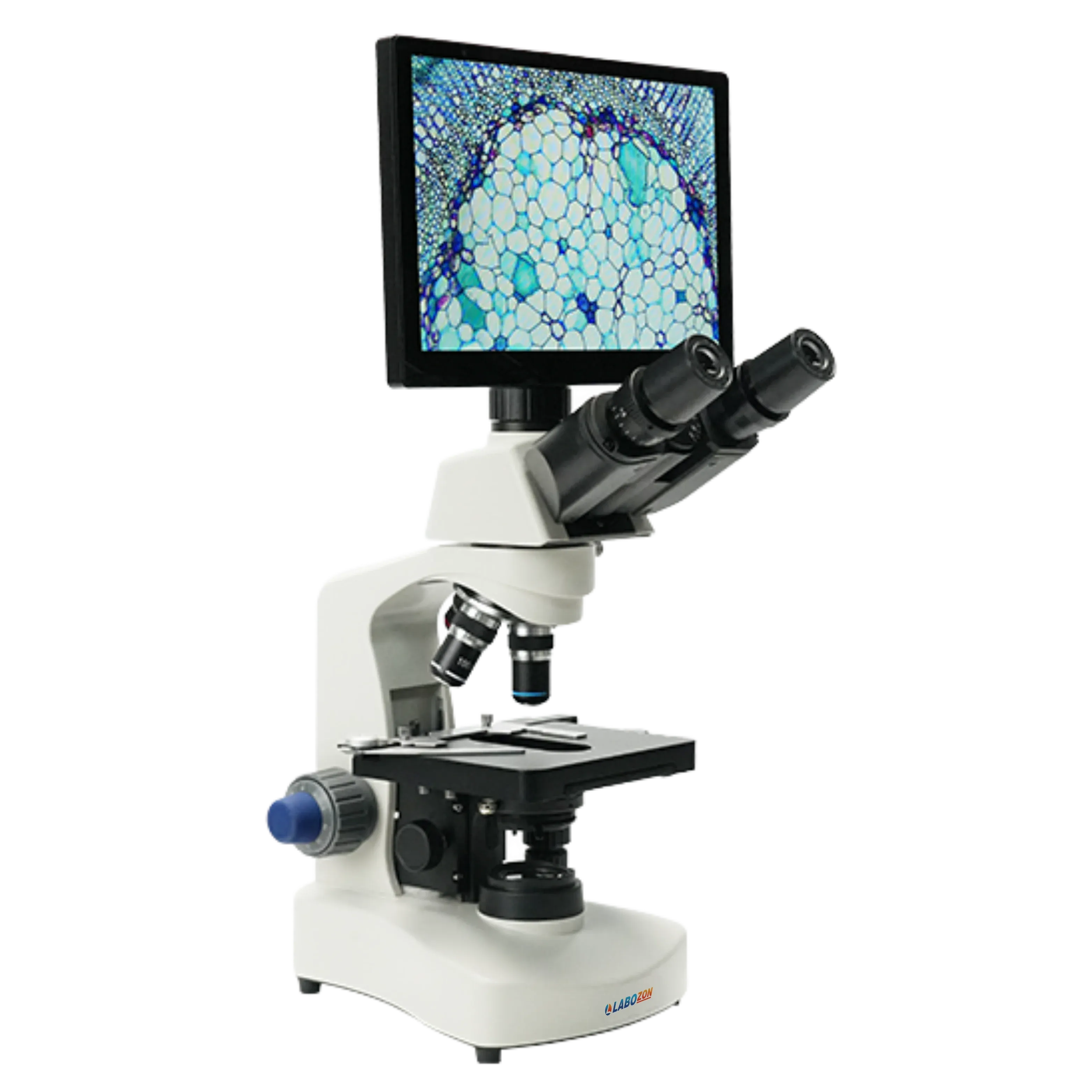

Digital Microscope LZ-DM-A100 combines trinocular optics with a 10.1-inch LCD touchscreen for clear digital specimen viewing, imaging, and measurement. Its 1920 × 1080 resolution at 60 fps provides smooth live images, while 4×, 10×, 40×, and 100× objectives support different magnification needs. HDMI output, Android 12, and adjustable LED illumination make it suitable for laboratory, biological, and educational applications.
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48–75 mm |
| LCD Digital Camera | All-in-One Touch Camera with HDMI output, 1920×1080@60fps, 10.1-inch LCD touch screen with Android 12 operating system and measurement function. Dual USB ports for USB disk and mouse |
| Eyepiece | WF10×/18mm |
| Objective | Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100× |
| Nosepiece | Backward quadruple nosepiece |
| Stage | Double layer mechanical stage 132mm × 142mm / 75mm × 40mm |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.004mm, coarse stroke 37.7mm per rotation, fine stroke 0.4mm per rotation, moving range 24mm |
| Condenser | NA1.25 Abbe condenser with iris diaphragm and filter holder |
| Illumination | LED illumination, brightness adjustable |
| Immersion Oil | 5ml immersion oil |
| Dimensions |
Microscope: 320 x 280 x 430 mm Camera: 430 x 220 x 280 mm |
| Weight |
Microscope: 6.5kg Camera: 2.3 kg |
Suitable for biological research, educational laboratories, clinical sample examination, pathology, medical and life science research, and laboratory quality control.
