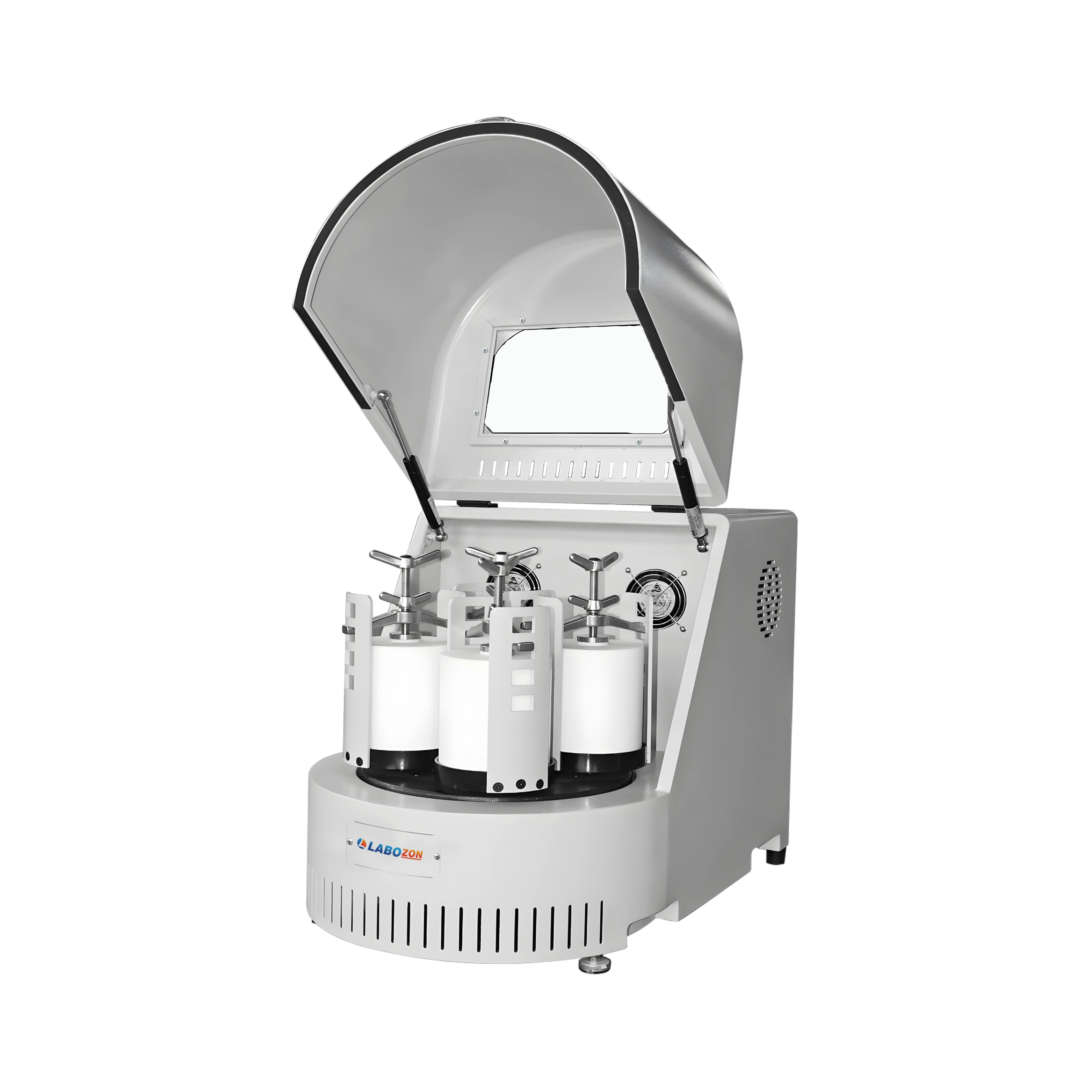

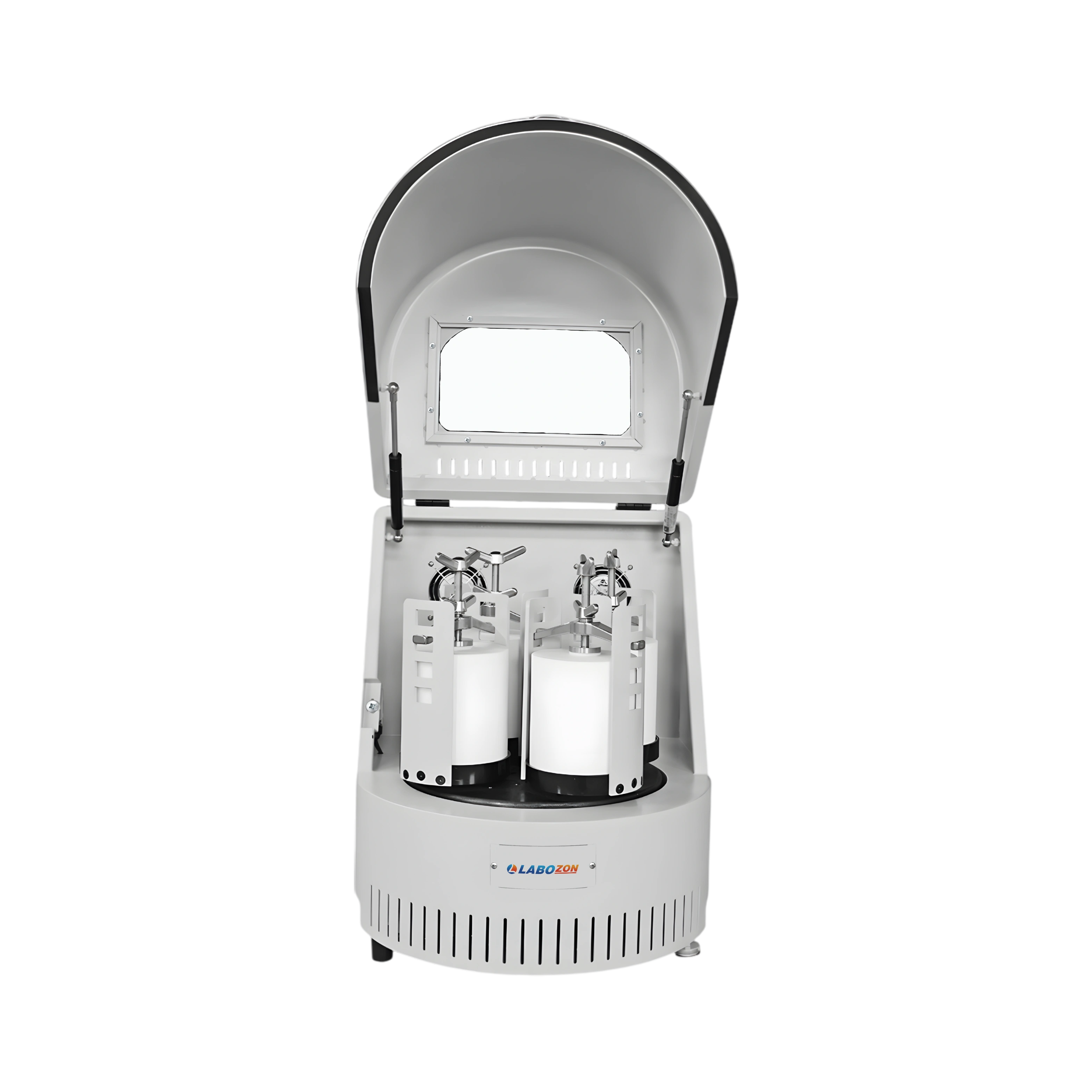

Planetary Ball Mill Machine LZ-PBM-A110 is used for fine grinding, mixing, and sample preparation in labs and industry. It operates with planetary motion and speed control from 70 to 670 rpm and supports 2–4 × 500 ml jars under vacuum or inert gas, enabling precise planetary milling of samples.
| Type | Vertical Semi- circle round shape |
| Max.Capacity | 0.66 L |
| Max. Capacity of Jar | 660 ml |
| Rotational / Speed | 1 ~ 2 |
| Rotation Speed | 70 - 670 rpm |
| Working Mode | Two or four mill jars working together |
| Driver Mode | Gear Driver & Belt Drive |
| Feed Size |
Soft & crispy material≤100mm Hard materials≤3mm |
| Output Granularity Size | 0.1μm |
| Timer | 1-9999 min (72 hours) |
| Noise | 60±5 ≤db |
| Speed Control | Frequency Controller |
| Feed Materials | Tungsten carbide, Agate, 304 Stainless steel, 316L Stainless steel, Corundum, Zirconia, Nylon, PU, Alumina ceramic, PTFE, and etc. |
| Grinding Jars | Stainless steel, Tungsten Carbide, Zirconium oxide, , Aluminium oxide etc |
| Grinding Medium | Stainless steel balls, Tungsten Carbide balls, Zirconium oxide balls, Aluminium oxide balls etc |
| Power Consumption | 0.75 KW |
| Power Supply | 220V-60Hz, 1Phase |
| Dimensions | 750 x 470 x 590 mm |
| Weight | 80 kgs |
High-speed planetary grinding for fine powders
Energy and speed control for consistent results
Vibration-assisted feeding for multiple samples
Programmable timers with forward/reverse rotation and safety slider
Wide material compatibility for contamination-free grinding
Nanoparticle Synthesis
Preparation of nanoparticles for research and experimental studies
Mechanical Alloying
Mixing and alloying metals for laboratory and industrial use
Ceramics Industry
Production of fine powders for advanced ceramic materials
Electronics Industry
Processing materials for electronic components and devices
Pharmaceutical Industry
Grinding active ingredients for lab-scale formulation studies
Request a Quote
Labozon Planetary Ball Mill Machine grinds and mixes samples using planetary motion for particle size reduction and homogenization. The planetary ball mill delivers consistent results for wet and dry materials and is used in industrial applications, materials science, mineral analysis, and pharmaceuticals.
