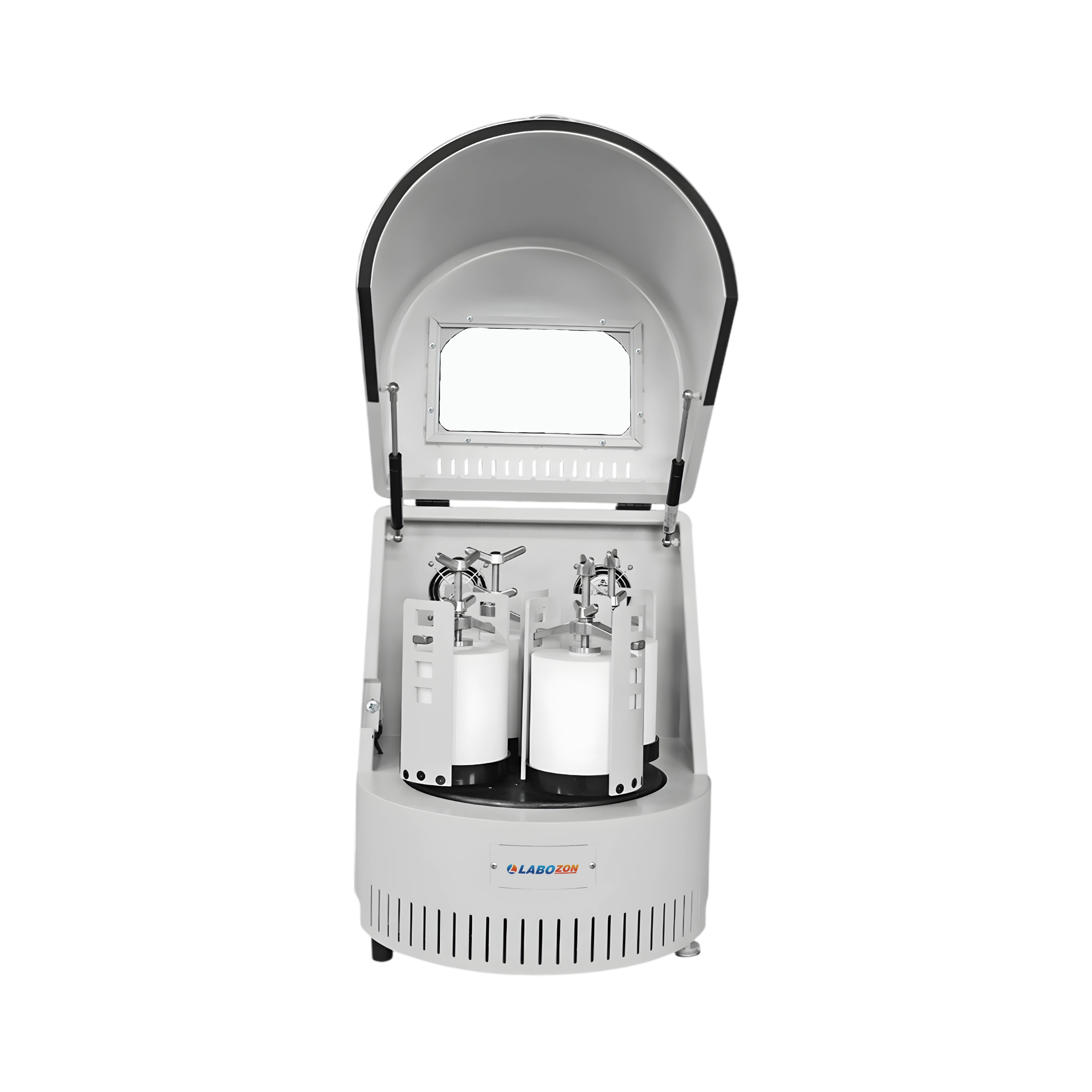

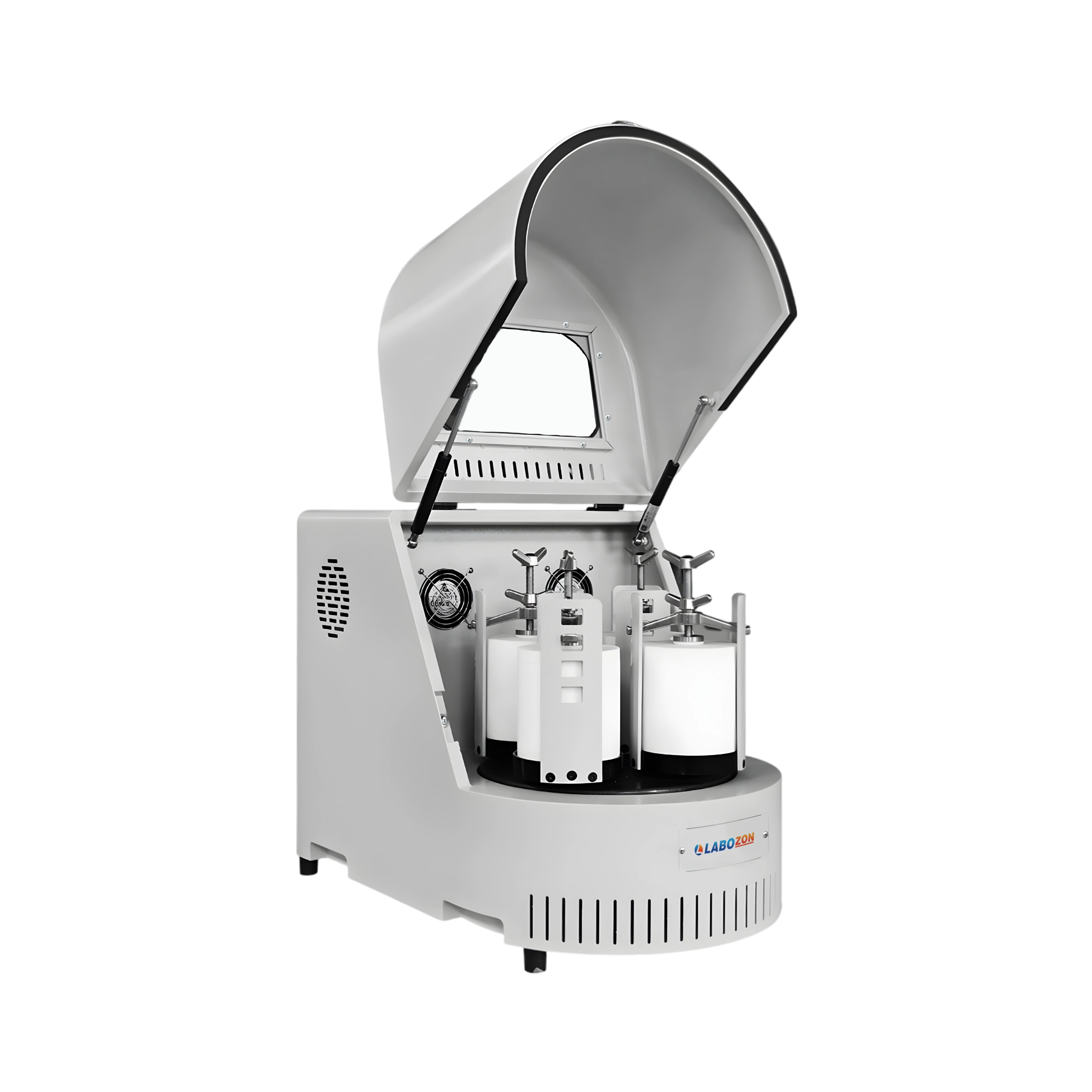

Planetary Ball Mill Machine LZ-PBM-A120 is used for laboratory grinding and material processing in research applications. The Planetary Milling Machine supports operation with two or four pots in a single working mode, allowing multiple samples to be processed simultaneously. A four-pot setup enables parallel experimental work. Our product is used in academic, research, and industrial labs that focus on material evaluation.
| Type | Vertical Semi- circle round shape |
| Max.Capacity | 2 L |
| Volume of each capacity | 50 ~500 ml |
| Pot Quantity | 4pcs |
| Rotation Speed | 70 - 670 rpm |
| Working Mode | Two or four pots working together |
| Driver Mode | Gear Driver |
| Feed Size |
Soft & crispy material≤10mm Hard materials≤3mm |
| Output Granularity Size | 0.1μm |
| Timer | 1-9999 min |
| Noise | 60±5 ≤db |
| Speed Control | Frequency Controller |
| Maximum Sample Volume (material + grinding ball) | 2/3 volume of the ball mill tank |
| Power Consumption | 0.75 KW |
| Power Supply | AC110/220V-50/60Hz |
| External Dimensions | 750 x 470 x 565 mm |
| Packing Dimensions | 820 x 530 x 720 mm |
| Net Weight | 80 kgs |
| Gross Weight | 100 kgs |
Supports wet and dry milling for laboratory material preparation
Accepts different jar shapes to suit varied grinding requirements
Frequency-controlled drive allows smooth adjustment during milling cycles.
Structural design minimizes vibration during high-speed operation.
Suitable for extended experimental runs in research environments
Advanced Material Research
Size reduction and uniform blending of experimental material samples
Chemical Laboratories
Dry and wet milling of chemical compounds for analytical and formulation work
Battery & Energy Research
Preparation of electrode and active materials for energy storage studies
Industrial Material Processing
Preparation of fine powders for industries such as ceramics, electronics, and pharmaceuticals
Environmental Sample Preparation
Processing soil and solid samples under controlled laboratory conditions
Below mentioned accessories are optional available in range 50,100,250,500ml
304 Stainless steel mill Pot
Hard Alloy Pot
Agate Pot
Zirconium Pot
PTFE Mill pot
Polyurethane Mill pot
Nylon Pot
Request a Quote
Labozon Planetary Ball Mill Machine grinds and mixes samples using planetary motion for particle size reduction and homogenization. The planetary ball mill delivers consistent results for wet and dry materials and is used in industrial applications, materials science, mineral analysis, and pharmaceuticals.
