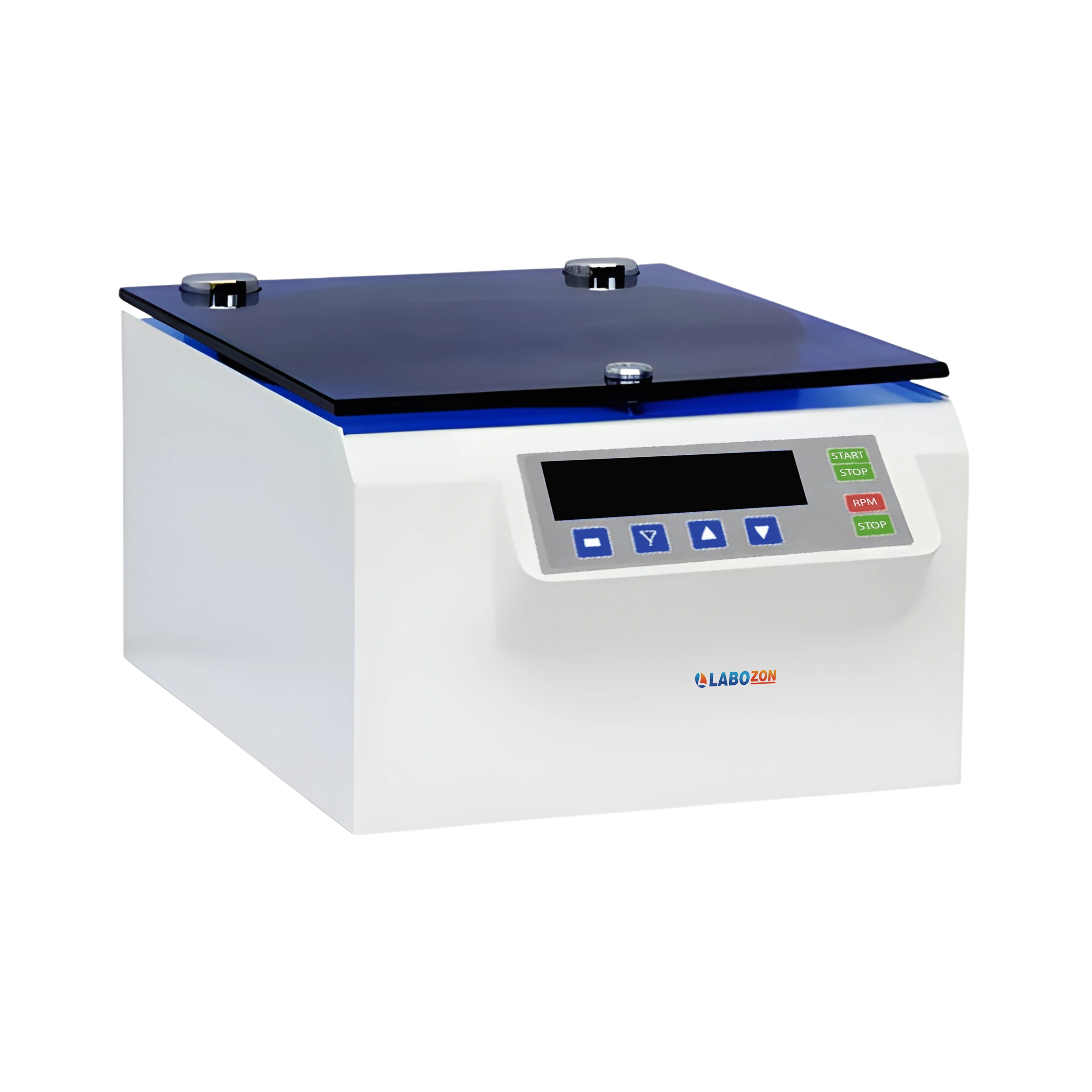

Blood Card Centrifuge LZ-BCC-A100-12

Blood Card Centrifuge LZ-BCC-A100-12 is of microprocessor control system with soft touch control panel. It is made up of stainless steel centrifugal chamber and resistant to weak detergents and disinfectants. Equipped with brushless motor to make sure free maintenance. Digital panel indicates speed, time, RCF of the centrifugation process. It runs over maximum speed of 4000rpm. Swing rotor is used in which it contains 12 cards and 24 cards. Parameters can be adjusted.

Blood Card Centrifuge LZ-BCC-A100-12
Specifications Features Applications Rotors Catalog Enquiry


Maximum Speed 4000 rpm
Maximum Capacity 12 cards
Maximum RCF 2120×g(24 cards), 1480×g(12 cards)
Timer 0 to 99 min 59 sec
RPM/RCF Convert Yes
Noise ≤55 dB
Temperature Range Normal
Acceleration/ Deceleration 10 kinds
Speed Accuracy ±20 rpm
Voltage AC220V/110V 50 Hz/60 Hz
Dimension (W×D×H) 12 cards 485×320×250 mm
Net Weight (12 cards) 17 kg
Dimension (W×D×H) 24 cards 500×380×250 mm
Net Weight (24 cards) 19 kg



It is widely used in the test of Blood group serology, blood type, micro column agglutination and immuno detection. It is designed for antibody screening and blood type testing


Order NumberRotor typeMaximum Speed(rpm)Volume(ml)Maximum RCF(×g)
1Swing rotor400012 cards1480
2Swing rotor300024 cards1190
