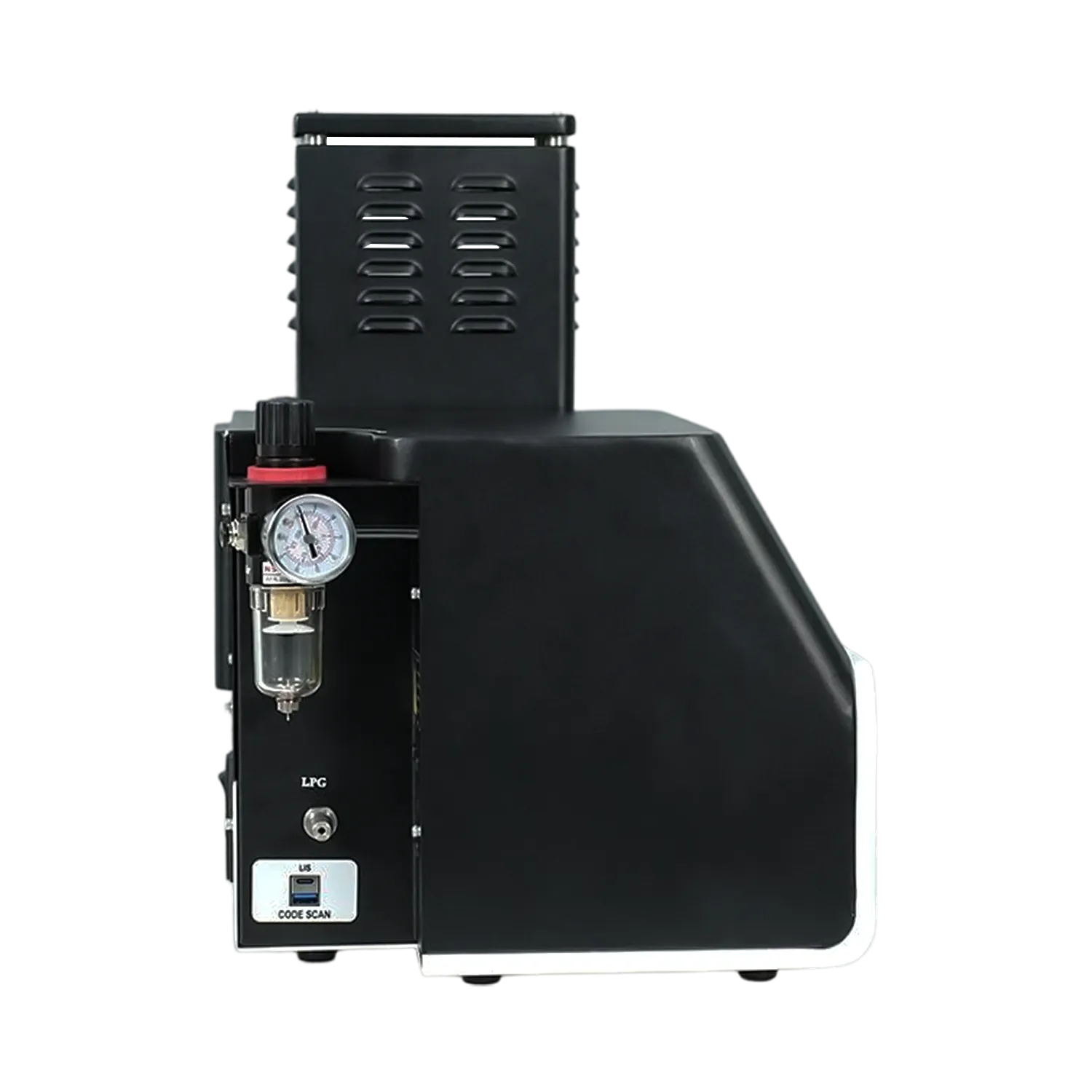

Flame Photometer LZ-FLP-B100
Flame Photometer LZ-FLP-B100 is a compact and reliable laboratory instrument designed for the quantitative determination of potassium (K), sodium (Na), lithium (Li), and calcium (Ca), Barium (Ba) in liquid samples. It features a 7.0-inch color touchscreen with an intuitive interface for simple operation and clear result display. With automatic flame-out detection, gas cut-off protection, calibration curve management, USB connectivity, and optional built-in printing, it provides convenient and dependable elemental analysis for routine laboratory testing.
Contact our team for bulk pricing and institutional quotations.
Delivery
details on request
details on request
Product
support
support
Technical
documentation
documentation
Product Specifications
Technical information for Flame Photometer LZ-FLP-B100.
| Product Name | Flame Photometer LZ-FLP-B100 |
|---|---|
| SKU | LZ-FLP-B100 |
| Test Elements | K / Na / Li / Ca / Ba |
| Number of Channels | 5 |
| LOD (ppm) | K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.104 ppm Ca: ≤2.004 ppm Ba: ≤6.043 |
| Linear Error (ppm) | K: ≤0.195 Na: ≤0.69 Li: ≤0.146 Ca: ≤3.006 Ba: ≤9.064 |
| Test Range (ppm) | K: 0.15–100br/>Na: 0.018–100 Li: 0.1–30 Ca: 0.1–1000 Ba: 0.1-300 |
| Response Time | <8 s |
| Sample Uptake | <4 mL/min |
| Stability | ≤3%(15s), ≤15%(6min) |
| Reproducibility | 3% |
| Fuel | LPG |
| Oxidant | Air |
| Air Supply | External |
| Power Consumption | 30 W |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Working Conditions | Temperature: 10–35°C; ≤85% RH |
| External Dimensions | 425 x 310 x 437 mm |
| Packing Dimensions | Main Unit: 634 x 364 x 337 mm Air Compressor: 350 x 185 x 345 mm |
| Gross Weight | Main Unit: 13 kg Air compressor: 5.3 kg |
Features
- Five-element measurement
- 7.0-inch color touchscreen
- Automatic flame-out detection
- Gas shut-off for enhanced safety.
- Supports up to 20 calibration curves
- USB communication
- Optional built-in thermal printer.
- Compact design
Standard Accessories
- LPG reducing valve
- Stainless steel bellows for LPG
- Silica gel tubing for liquid waste
- PU tubing for air
- Air compressor
Optional Accessories
- FP atomizer
- Built in thermal printer
- Software
Applications
Suitable for clinical laboratories, pharmaceutical testing, environmental analysis, food and beverage testing, agricultural laboratories, water-quality analysis, and general chemical research requiring quantitative determination of K, Na, Li, and Ca.
