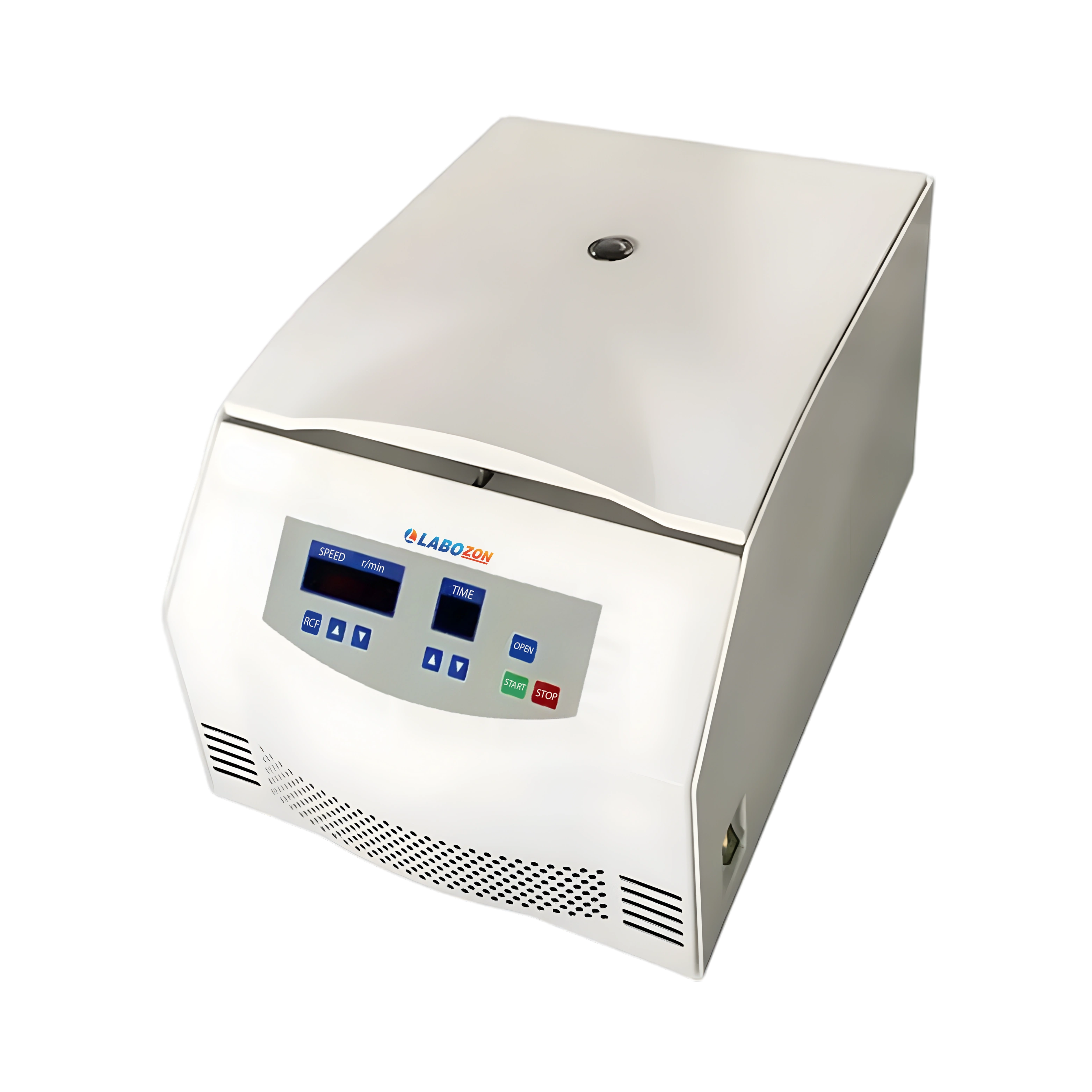

High-Speed Centrifuge LZ-HC-B120 (Refrigerated)

Name: High-Speed Centrifuge LZ-HC-B120 (Refrigerated)
Brand: Labozon
SKU: LZ-HC-B120
Availability: InStock
Rating: 4.0 (846 reviews)

High-Speed Centrifuge LZ-HC-B120 is designed for rapid sample processing and separation with a maximum speed of 18500 rpm. It can utilize both low-speed and high-speed rotors in a single centrifuge unit. Integrated with a brushless DC motor that enables operational efficiency, longevity, and smooth quiet operation. It generates significant centrifugal forces, facilitating faster and more efficient separation of particles or substances based on density.

High-Speed Centrifuge LZ-HC-B120 (Refrigerated) - Specifications

Capacity	4×180 ml
Speed	18500 rpm
RCF	23990×g
Speed Accuracy	± 20 rpm
Timer Range	0 to 99 min
RPM/RCF Convert	Yes
Noise	≤58 dB
Acceleration /Deacceleration	10 types
Power Supply	AC 220/110 V, 50/60 Hz
External Dimensions	650 x 680 x 400 mm
Packing Dimensions (W×D×H)	880 x 800 x 580 mm
Net Weight	90 kg
Gross Weight	130 kg

High-Speed Centrifuge LZ-HC-B120 (Refrigerated) - Key Features

Speed and time parameters shown on an LED display
10 acceleration and deceleration types
Over-speed sensor for protective measures
Centrifuge with lid locks and imbalance detection
Maintains sample integrity
Feature intuitive controls and user interfaces
Built with robust materials to withstand high velocities and forces

High-Speed Centrifuge LZ-HC-B120 (Refrigerated) - Applications

High-speed centrifuges are essential components in numerous scientific and medical procedures, serving as indispensable instruments for crucial tasks like protein precipitation, RNA extraction, clinical sample processing, and a varied range of separation experiments.

High-Speed Centrifuge LZ-HC-B120 (Refrigerated) - Rotors

Rotor Name	Maximum speed	Maximum volume	Maximum RCF
Swing Rotor 01 (Round bucket)	4000 rpm	4×300 ml	3180 g
Swing Rotor 02 (Square bucket)	4000 rpm	4×300 ml	3180 g
Swing Rotor 03	4000 rpm	4×24×7 ml	3150 g
Swing Rotor 04	4000 rpm	4×24×5 ml	2750 g
Swing Rotor 05	4000 rpm	4×16×10 ml	3150 g
Swing Rotor 06	4000 rpm	4×22×7 ml	3410 g
Swing Rotor 07	4000 rpm	4×22×5 ml	2840 g
Swing Rotor 08	4000 rpm	4×18×10 ml	3140 g
Microplate Rotor 01(box type)	4000 rpm	2×4×96 well	2770 g
Microplate Rotor 02 (fame type)	4000 rpm	2×4×96 well	2910 g
Microplate Rotor 03 (fame type)	4000 rpm	2×3×48well	2300 g
Swing rotor 09	5000 rpm	4×1×50 ml	4730 g
Swing rotor 10	5000 rpm	4×1×100 ml	4730 g
Swing rotor 11	4000 rpm	4×2×100 ml	3020 g
Swing rotor 12	4000 rpm	4×2×50 ml	3200 g
Swing rotor 13	4000 rpm	4×4×15 ml	3200 g
Swing rotor 14	4000 rpm	4×6×15 ml	3200 g
Swing rotor 15	4000 rpm	4×8×15 ml	3200 g
Swing rotor 16	4000 rpm	4×8×10/7 ml	2770 g
Swing rotor 17	4000 rpm	4×8×5ml adapter	2380 g
Swing rotor 18	4000 rpm	4×6×10/7 ml	2770 g
Swing rotor 19	4000 rpm	4×6×5ml adapter	2380 g
Swing rotor 20	4000 rpm	4×4×10/7 ml	2770 g
Swing rotor 21	4000 rpm	4×4×5 ml adapter	2380 g
Swing rotor 22	4000 rpm	4×16×5 ml	2520 g
Swing rotor 23	4000 rpm	4×16×7 ml	2880 g
Swing rotor 24	4000 rpm	4×12×10 ml	2880 g
Angle Rotor 01	14000 rpm	4×8 PCR	12070 g
Angle Rotor 02	13000 rpm	6×8 PCR	16080 g
Angle Rotor 03	14000 rpm	8×8 PCR	13390 g
Angle Rotor 04	13000 rpm	12×8 PCR	17220 g
Angle Rotor 05	14000 rpm	40×0.5 ml	19960 g
Angle Rotor 06	18500 rpm	12×1.5 ml	23990 g
Angle Rotor 07	15000 rpm	24×1.5 ml	20600 g
Angle Rotor 08	13500 rpm	30×1.5 ml	19340 g
Angle Rotor 09	11000 rpm	48×1.5 ml	12840 g
Angle Rotor 10	15000 rpm	16×5 ml	19350 g
Angle Rotor 11	14000 rpm	6×10 ml	16460 g
Angle Rotor 12	13000 rpm	12×10 ml	17030 g
Angle Rotor 13	11000 rpm	16×10 ml	13950 g
Angle Rotor 14	11000 rpm	8×15 ml	12730 g
Angle Rotor 15	9000 rpm	12×15 ml	9590 g
Angle Rotor 16	5000 rpm	24×15 ml	3500 g
Angle Rotor 17	5000 rpm	30×15 ml	3830 g
Angle Rotor 18	12000 rpm	6×30 ml	14000 g
Angle Rotor 19	12000 rpm	6×50 ml (sharp)	16050 g
Angle Rotor 20	12000 rpm	6×50 ml (round)	15960 g
Angle Rotor 21	5000 rpm	12×50 ml	3860 g
Angle Rotor 22	4000 rpm	24×50 ml	2910 g
Angle Rotor 23	11000 rpm	4×85 ml	13560 g
Angle Rotor 24	10000 rpm	4×100 ml	10310 g
Angle Rotor 25	8000 rpm	6×100 ml	7280 g
Angle Rotor 26	4000 rpm	12×100 ml	2970 g
Angle Rotor 27	12000 rpm	24 capillaries	15800 g
Swing Rotor 25	15000 rpm	4×5 ml	19920 g
Vertical rotor 01	16000 rpm	16×5 ml	16450 g
Vertical rotor 02	14000 rpm	8×30 ml	19750 g
