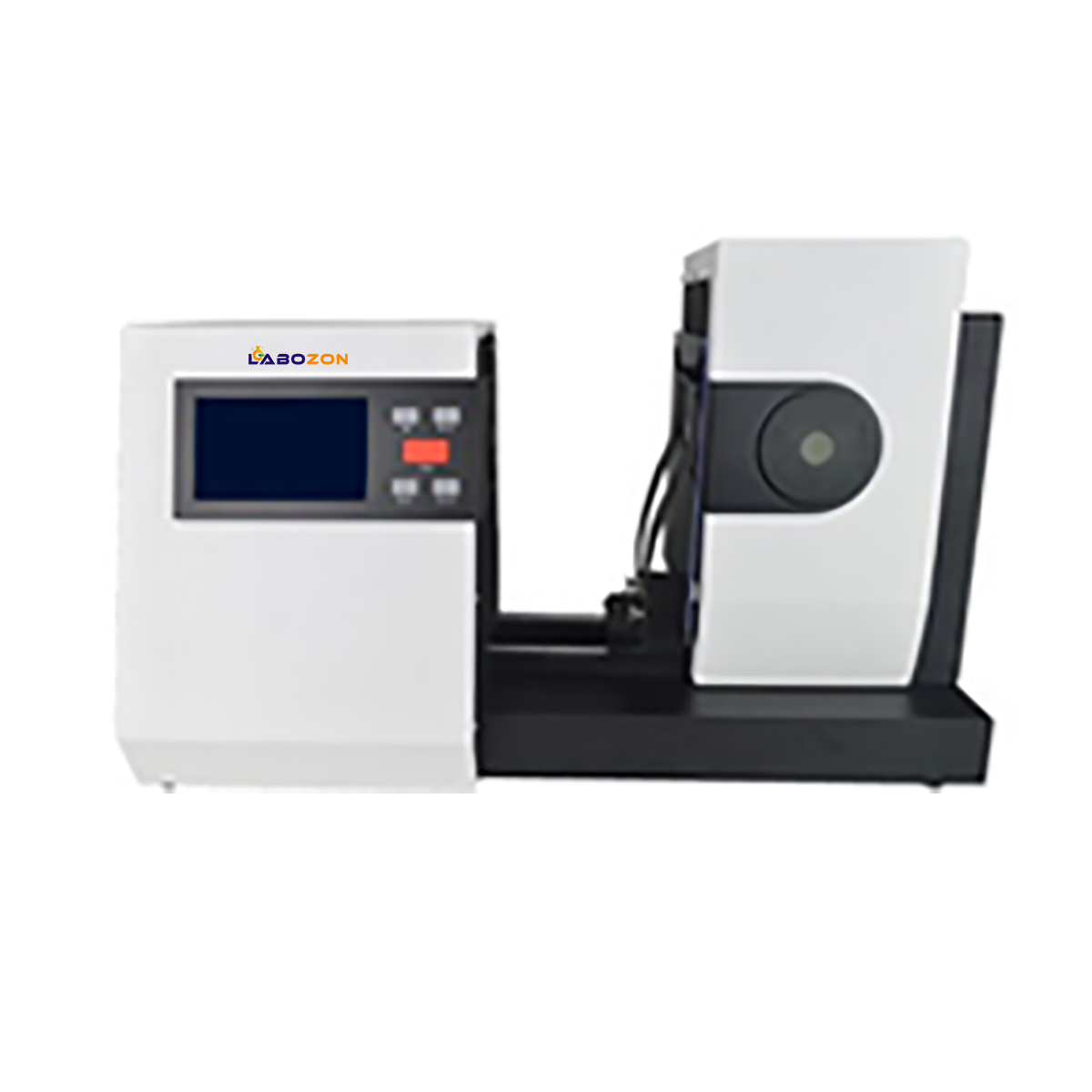

Color and Haze Meter LZ-HZM-B100

Overview

Color and Haze Meter LZ-HZM-B100 referred to as a color, haze and transmittance measurement machine. Performs both vertical and horizontal sample measurements. Features open measurement area; there's no limit on sample size. It uses different light sources sort of A, C, D65 to quantify haze and transmittance of the test sample. Designed in accordance with ASTM, ISO international standards to satisfy the customers’ needs.

Specifications :

Light source	CIE-A,CIE-C,CIE-D65 Chromaticity Value: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
Parameters	HAZE, Transmittance(T), Spectral Transmittance, Whiteness Index (ASTM E313-00,ASTM E313-73, CIE/ISO AATCC, Hunter, Taube Berger Stensby) Yellowness Index (ASTM D1925，ASTM E313-00，ASTM E313-73) Tint (ASTM E313-00), Metamerism Index, Milm APHA, Pt-Co, Gardner, Color Difference (ΔE*ab, ΔE*CH,ΔE*uv, ΔE* cmc (2:1),ΔE* cmc (1:1),ΔE*94, ΔE*00)
Spectral response	CIE Luminosity function Y/V (λ)
Wavelength	400 to 700 nm
Wavelength interval	10 nm
Geometry	0/d
Measurement area/sample port	16.5 mm/ 21 mm
Measurement range	0 to 100 %
Haze resolution	0.01
Haze responsibility	≤ 0.1
Sample size	Thickness ≤ 150 mm
Standards	ASTM D1003/D1044, ISO13468/ISO14782, CIE No.15, ISO 7724/1, ASTM E1164
Display	5.0 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	220 V with power cable
Working temperature	0 to 45°C
Storage temperature	-25 to 50°C
Dimension (L×W×H)	598×247×366 mm
Packaging dimension (L×W×H)	700×340×560 mm
Weight	15.5 kg

Features :

• Open measurement area, free sample size
• Software for color, haze and transmittance measurement
• Powerful color measurement function with different measurement indexes
• Measures liquid as well as sheet material
• Three types of light source A, C, D65
• No need of warm up, 03 seconds measurement time
• Parameters tested: Color, Haze, Transmittance, Yellowness, and Whiteness Index
• 5 inch TFT LCD screen
• LED light source with 10 years lifetime
• Confirms to ASTM & ISO haze measurement standards

Standard Accessories :

Accessories no.	Name
1	Power adapter
2	USB cable
3	PC software
4	Haze standard plate

Optional Accessories :

Accessories No.	Name
1	Measurement fixtures
2	Haze standard film

Applications :

Used to measure color, haze, and transmittance of different objects like LCD panel screens used in TV display, car navigation screen, computer screen, the samples like anti-glare plastic sheets, glass films, mobile phone cover, and other transparent and semi-transparent material can be tested.
