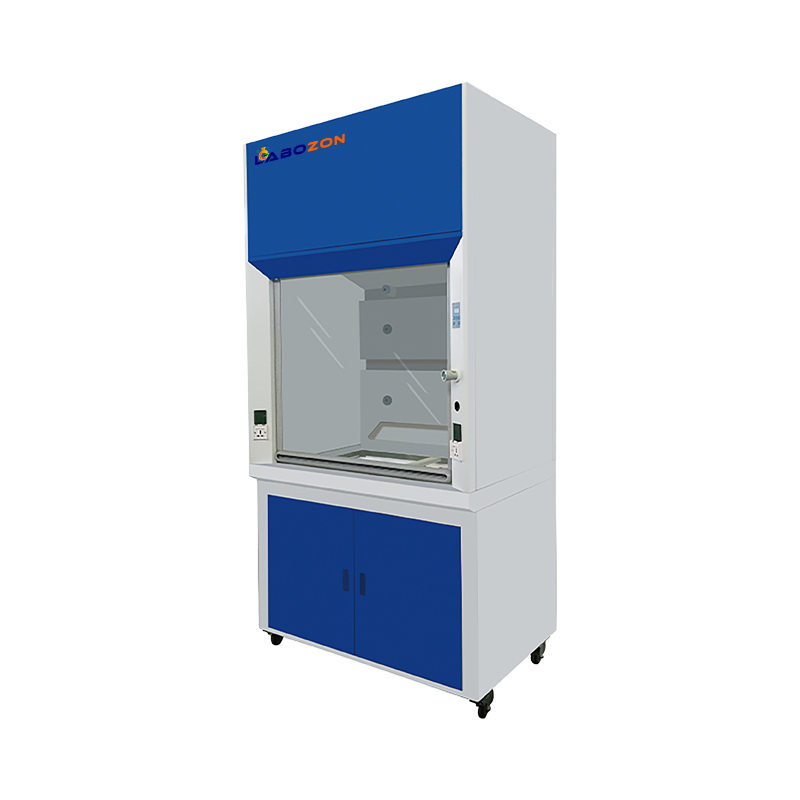

Ducted Fume Hood LZ-DFH-A204-220V

Overview

Ducted Fume Hood LZ-DFH-A204-220V ventilated for keeping laboratory reagent with potentially hazardous fumes, vapours & chemical powders. Can be put on any available work surface with adjustable airspeed with 9 level and PP work surface resists acids and other chemicals. Offered different sizes and different materials with optional PP Blower & 4.3 m exhaust duct: 300 mm

Specifications :

Maximum Opening	750 mm
Surface Height	900 mm
Air Velocity	0.3 to 0.8 m/s
Exhaust Volume	1140 m3/h
Front Window	Adjustable height, with 5 mm toughened glass(Manual)
Material	Main Body Cold rolled steel with bacteria powder coating Work Station Phenolic resin Front & Back Window Laminate board with good acid and alkali resistance function
Control System	Microprocessor
Lamp	LED-16W*1
Noise	≤68 dB
Display	LED
Blower	PP centrifugal Blower
Pipe Strap	2 PCS
Exhaust Duct	PVC-300 mm
Power Consumption	500 W
Internal Dimension	1590x600x870 mm
External Dimension	1800x800x2515 mm
Packing Dimension	1940x40x1900 mm
Gross Weight	365 kg
Electrical Requirement	220V

Features :

• LED display with adjustable air speed with 9 level
• Equipped with Microprocessor control
• Provide excellent resistant function against acid and alkali
• Back up memory function after power failure
• Design with adjustable height with manual front glass window
• Build with PP Centrifugal blower
• Easy to carry and install

Accessories :

Wall-Fed Air Cock
Air supply flow control valve
PP Water Sink
LED Lamp
Total Load of 2 water proof socket:500 W
PP Blower
4.3 m exhaust duct: 300 mm
Base Cabinet Pipe Strap
Water Tap
Water supply flow control valve
Wall water supply cock(Green)
Water supply flow control valve
