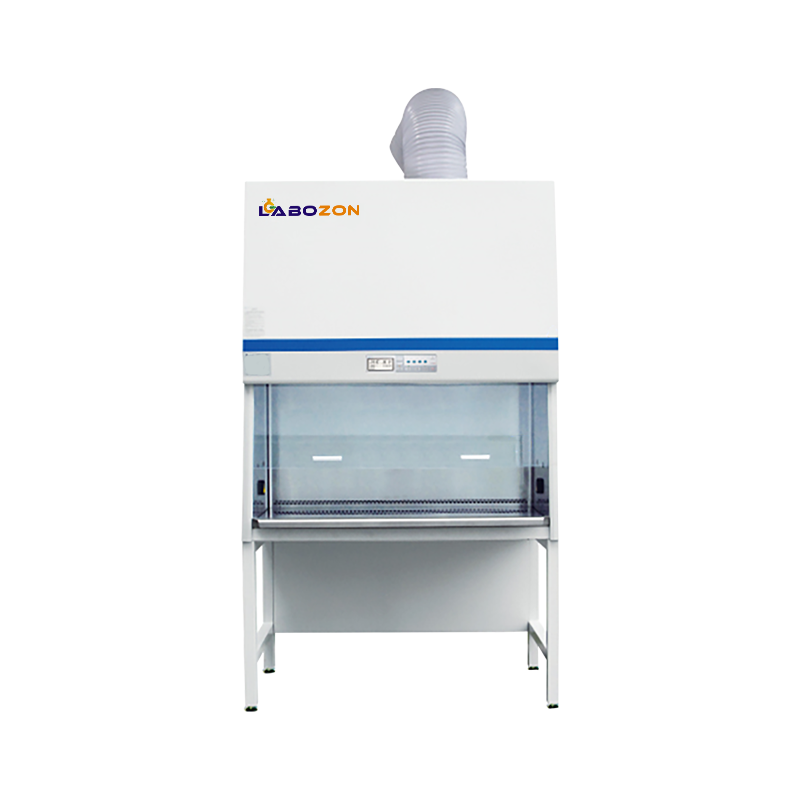

B2 Biological Safety Cabinets LZ-BSC-C220

Overview

B2 Biological Safety Cabinets LZ-BSC-C220 NSF/ANSI 49 and EN12469 certified by NSF International BSC with work environment and ergonomic design. The necessary consumable are available such as support stand, Ultraviolet Lamp Kits, Optional mobile UV lamps, Prefilters, Illumination Light, Disposable Active Carbon Post filters. Used in biosafety laboratories, clinical research, drug testing, pharmaceutical.

Specifications :

Air exhaust	100%
Internal Work Space	0.54 m2
Normal Size	0.9 m
Average Airflow Velocity	Inflow 0.53 m/s Down flow 0.35 m/s
Airflow Volume	Inflow 363 m³/h Exhaust 927 m³/h
Filter Efficiency	HEPA Exhaust 99.97%(0.3 µ) ULPA Down flow 99.9995%( 0.1 to 0.2 µ)
KI-Discus containment & Microbiological Testing	Product Protection Test 1~8×106 ≤5CFU Cross-contamination Test 1~8×106 ≤2CFU
Noise	NSF/ANSI 49 <60 dBA EN 12469 <57 dBA
Material	Work Zone stainless steel, type 304 Main Body steel with white oven-baked epoxy-polyester Side Walls stainless steel, type 304
Electrical Sliding Window	Yes
RMS	≤3 μm
Power Consumption	850 W
Electrical Supply	220V/50 Hz, 110V/60 Hz
External Dimension(WxDxH) With Base Stand	1040×790×2200 mm
Internal Dimension(WxDxH)	950×575×625 mm
Package Dimension	1125×945×1710 mm
Gross Weight	260 kg
Net Weight	210 kg

Features :

• Compliance with NSF/ANSI 49 and EN12469 certified by NSF International standard
• KI Discus Containment Test According to EN12469 (Potassium lodide)
• Equipped with flow-safe technology ensure your safety and laminar airflow over the working area takes containment to another level
• ULPA filters automatically reduces speed flow, reduce energy consumption and extend filter life, offer exhaust filters with 99.999% typical efficiency for particle size of 0.1 to 0.2, 0.3 microns
• Design with hy-Chamber plenum and dual side walls prevent the possibility of contamination from leaks to the exterior environment and negative pressure sidewalls avoid contaminants from escaping
• With backward-slanted safety grade glass delivers safety from burst and provide UV with more convenience observation
• Programmable automatic UV light timer, UV lamp with interlocking safety features
• Internal Chamber made of stainless steel type 304, that provide easy cleaning and external epoxy/polyester coated steel for durable and rigid construction of unit
• Large and intuitive LCD display for operating parameters, observing airflow velocity and alarm function, activation of blower, lamp, UV, electrical receptacles and other operational selection

Applications :

Used in biotechnology, Microbiology, Pharmaceutical, routine research applications such as medium preparation, tissue and cell culture, human histology, PCR, Blood analysis, QA/QC, drug preparation, trace amount of radio nucleotide, staining etc

Accessories :

Support stand: 560mm (22.0'') , 660mm (34.0'') or 760mm (29.9''), with castor
Ultraviolet Lamp Kits, Optional mobile UV lamps
Prefilters
Illumination Light
Disposable Active Carbon Postfilters
