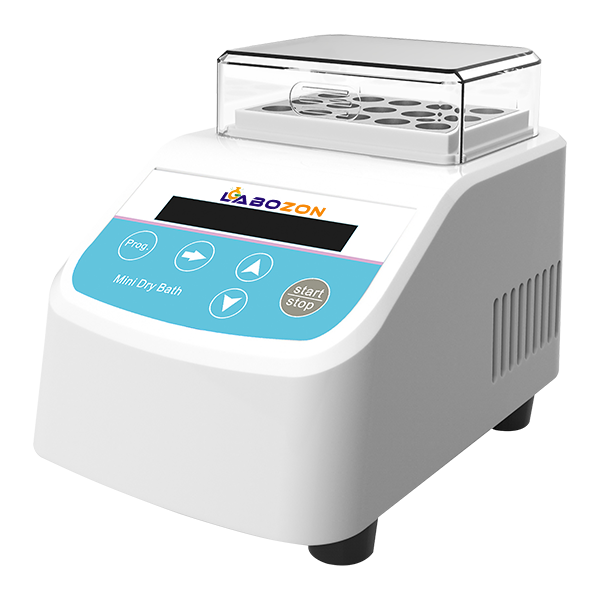

Dry Bath Incubator LZ-DBI-A101

Overview

Dry bath incubator LZ-DBI-A101 is a versatile chilling/ heating dry bath incubator. It offers a temperature range from RT+15°C to 100°C and offers ≤±0.3°C module/block temperature homogeneity. Designed with digital LED display to show simultaneously set and real time, and temperature. It structures unique design, compact size, and portable nature. This easy-to-use device offers reliable results with integrated fault detection feature, over temperature protection, and electronic calibration feature.

Specifications :

Temperature setting arrange	Room temperature +15°C to 100°C
Temperature accuracy	≤±0.3°C
Time setting arrange	1 sec to 99 h 59 min
Module/Block temperature homogeneity	≤±0.3°C
Display accuracy	0.1°C
Temperature stability	±0.3°C
Heating rate	≤ 20 min(25°C to 100°C)
Cooling rate 1	≤ 20 min(100°C to 25°C)
Cooling rate 2	≤ 20 min (Room temperature to Below Room temperature 15˚C
End of run 4˚C save	Yes
Multipoint operation	Max 5 points
Multipoint cyclic operation	Max cyclic 99 times
Automatic preheating	Yes
Startup automatic operation	Yes
Automated recovery of power cut	Yes
Capacity	Refer Optional Accessories For Block Details
Display	LED
Dimension	145 × 113 × 140 mm
Power consumption	60 W
Power supply	AC 100 to 220V, 50/60 Hz
Weight	1 kg

Features :

• Designed with digital LED display
• Built-in safety device for over-temperature
• Adopts intelligent algorithm system
• Offers temperature deviation calibration function
• Automated recovery system during power cut-off
• Structured with unique design, compact size, easy device movement
• Automatic fault detection and buzzer alarm function
• Multiple modules options to select

Optional Accessories :

Note: From Below given blocks, any one choice of block will be offered with dry bath Incubator, for extra block it will cost extra charge.
Block Model No.	Tube Quantity And Size	Tube Type
DB-01	40 × 0.2 ml	Standard centrifuge tube
DB-02	24 × 0.5 ml	Standard centrifuge tube
DB-03	15 × 1.5 ml	Standard centrifuge tube
DB-04	15 × 2 ml	Standard centrifuge tube
DB-05	8 to 12.5 × 12.5 mm	Hematocrit
DB-06	4 × 15 ml	Standard centrifuge tube
DB-07	2 × 50 ml	Standard centrifuge tube

Applications :

Dry bath incubator can be used in sample preparation, sample coagulation, enzyme-substrate reaction and DNA amplification. It is also used for ligation reaction and storing oocytes.
