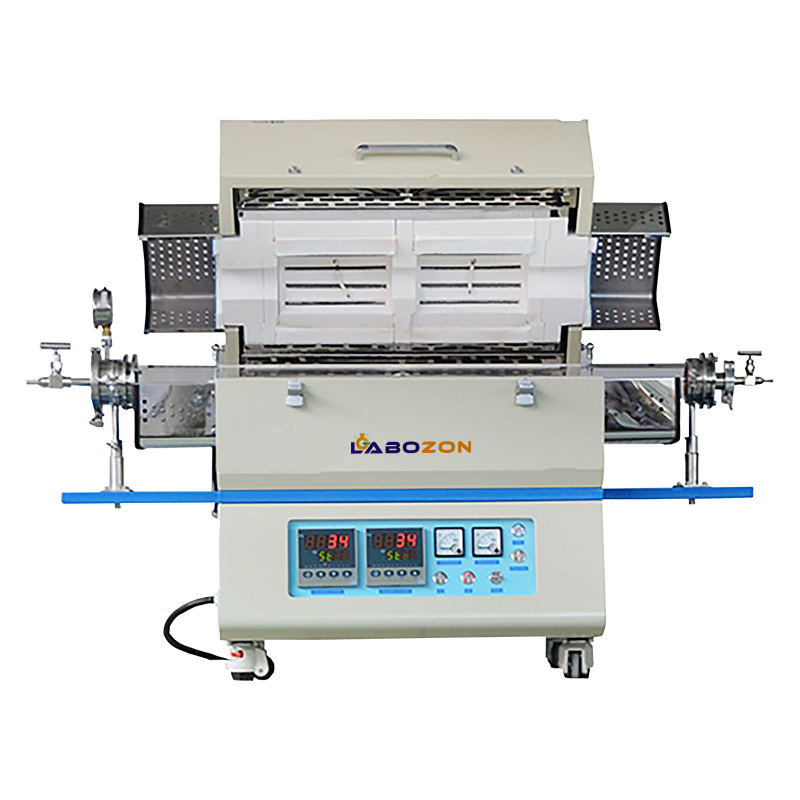

Tube Furnace LZ-TBF-A102

Overview

Tube Furnace LZ-TBF-A102 is a microprocessor controlled tube furnace with the highest temperature in the first and second temperature zones 1200℃ and 100 × 1000 mm tube size. Furnace is made of high quality alumina polycrystalline fiber curing furnace formed by vacuum suction filtration, and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as imported resistance wire (Kanthal A1, Sweden), K type thermocouple. It has the functions of over-temperature, break-off, over-current protection, etc. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.

Specifications :

Tube size	100 × 1000 mm
Heating element	Resistance wire imported from Sweden Kanthal A1
Phase	Single phase
Maximum Temperature in the first and second temperature zones	1200℃
Rated temperature in the first and second temperature zone	1100℃
Furnace material	High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration
Control accuracy	+/- 1℃
Heating rate	≤30℃/ Min (it can be modified as required)
Trigger	Phase-shifted trigger
Silicon controlled	106/16E Simenkang, Germany
Length of heating section in the first temperature zone	205 mm
Length of heating section in the second temperature zone	205 mm
Recommended rate of temperature rise	≤15℃/ Min
Thermocouple Type	K Type
Total constant temperature length	250 mm
Peripheral surface temperature	≤45℃
Dimension	1140 × 460 × 695 mm
Power Consumption	3.6 kW
Power Supply	220 V

Features :

• Designed with 30-stage program temperature control intelligent PID adjustment
• Offers over-temperature protection, the electric furnace heating circuit is automatically cut-off
• France is made up of High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration
• The highest temperature in the first and second temperature zones 1200℃
• Material used stainless steel, will not rust, and will not slag when used for a long time
• Accurate measurement and control of temperature using K type thermocouple
• The furnace is equipped with communication interface and software
• The surface of the furnace is smooth and not easy to drop powder
• The furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace
• The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently adapt rise and fall in temperature
• Offers, Power off protection, Temperature self-turning function

Standard Accessories :

Accessories no.	Name	Qty.
1	Quartz tube	1 pcs
2	Stainless steel flange	1 set
3	Stainless steel hook	1 pcs
4	Alumina furnace plug	2 pcs
5	High temperature gloves	1 pair
6	K-type Thermocouple	2 pcs

Applications :

Tube Furnace is used in scientific research institutes, industrial and mining enterprises to do high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing Product. The testing device is also used for highly sophisticated metallurgical applications. All types of tube furnaces work on the basis of conventions, conductions, and with the electrical resistance heating elements.
