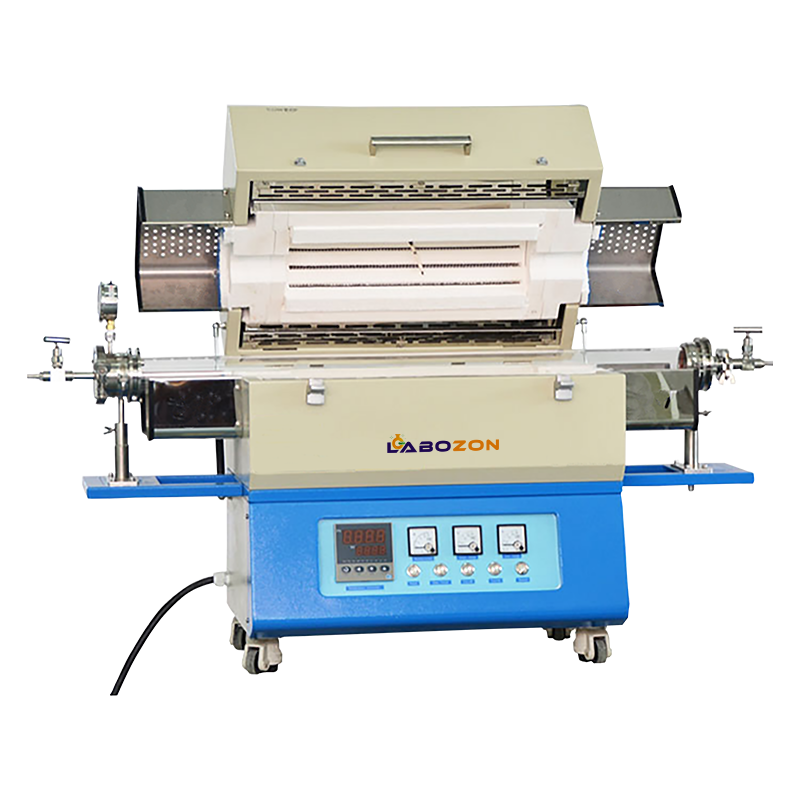

Tube Furnace LZ-TBF-B301

Overview

Tube Furnace LZ-TBF-B301 is a microprocessor controlled tube furnace with the maximum working temperature 1700℃ and 80 × 1000 mm tube size. Furnace is made of high quality alumina polycrystalline fiber curing furnace formed by vacuum suction filtration, and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as MoSi2, B type thermocouple. It has the functions of over-temperature, break-off, over-current protection, etc. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.

Specifications :

Tube size	80 × 1000 mm
Tube material	Quartz
Heating element	MoSi2 heating element
Phase	Single phase
Maximum working temperature	1700℃
Rated temperature	1650℃
Furnace material	High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration
Control accuracy	+/- 1℃
Heating rate	≤20℃/ Min (it can be modified as required)
Trigger	Phase-shifted trigger
Silicon controlled	106/16E SEMIKRON
Heating length	300 mm
Recommended rate of temperature rise	≤10℃/ Min
Thermocouple Type	B Type
Peripheral surface temperature	≤45℃
Dimension	1120 × 490 × 855 mm
Power Consumption	5 kW
Power Supply	220 V

Features :

• Designed with 30-stage program temperature control intelligent PID adjustment
• Offers over-temperature protection, the electric furnace heating circuit is automatically cut-off
• France is made up of High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration
• The maximum working temperature is 1700℃
• Material used stainless steel, will not rust, and will not slag when used for a long time
• Accurate measurement and control of temperature using B type thermocouple
• The furnace is equipped with communication interface and software
• The surface of the furnace is smooth and not easy to drop powder
• The furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace
• Built-in RS 485 digital communications port
• The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently adapt rise and fall in temperature
• Offers, Power off protection, Temperature self-turning function

Standard Accessories :

Accessories no.	Name	Qty.
1	Aluminum tube	1 pcs
2	Stainless steel flange	1 set
3	Stainless steel hook	1 pcs
4	Alumina furnace plug	1 pcs
5	High temperature gloves	1 pair
6	Alumina crucible	1 pcs

Applications :

Tube Furnace is used in scientific research institutes, industrial and mining enterprises to do high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing Product. The testing device is also used for highly sophisticated metallurgical applications. All types of tube furnaces work on the basis of conventions, conductions, and with the electrical resistance heating elements.
